Product Description

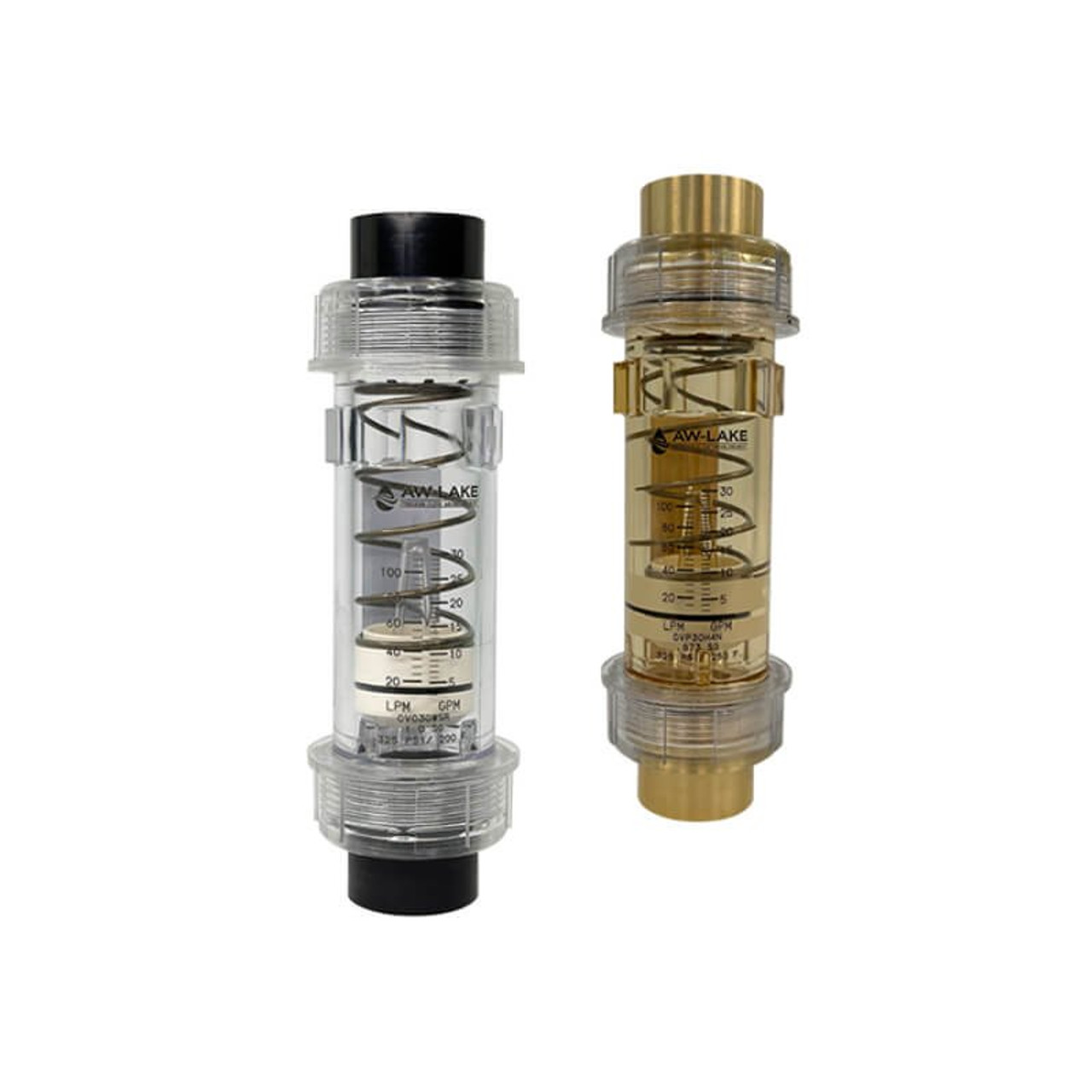

AW-Lake CVC30W5N
ClearView Value Variable Area Flow Meter, Polycarbonate H20 Housing, 1" Female NPT Threads (brass), 325 psi Max, 3 to 30 gpm Volume Flow RateNext Day Fittings is an authorized AW-Lake Distributor. If you have any questions about the AW-Lake CVC30W5N 's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official AW-Lake distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the AW-Lake product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your AW-Lake partner every step of the way. Product Type | Flow Meter |
Style | Clearview Value |
Accuracy | ±2% of full scale |
Connection Size | 1" |
Connection Type | Female NPT Threads (brass) |
Filtration Requirements | 74 micron filter or 200 mesh screen minimum |
Flow Measuring Range | 1 to 30 gpm |
Inch/Metric | Inch |
Medium | Water |
Mounting Type | Horizontal, Vertical and Inverted |
Operating Pressure [Max] | 22.4 bar |
Operating Temperature [Max] | 93 °C |
Repeatability | ±1% of full scale |
Standard Calibration Fluids | Oil monitors: DTE 25® at 110°F (43°C), 0.873 sg |
Volume Flow Rate [Liquid] | 3 to 30 gpm |
Housing Material | Polycarbonate H20 |
Wetted Material | Polycarbonate |
Pipe Material | Polycarbonate |
Ports Material | Brass, Ryton® |
Seal Material | Viton |
Spring Material | Stainless Steel |
Process Port Type | 1" NPT |
Length | 2.4" |
Height | 7.56" |
