Product Description

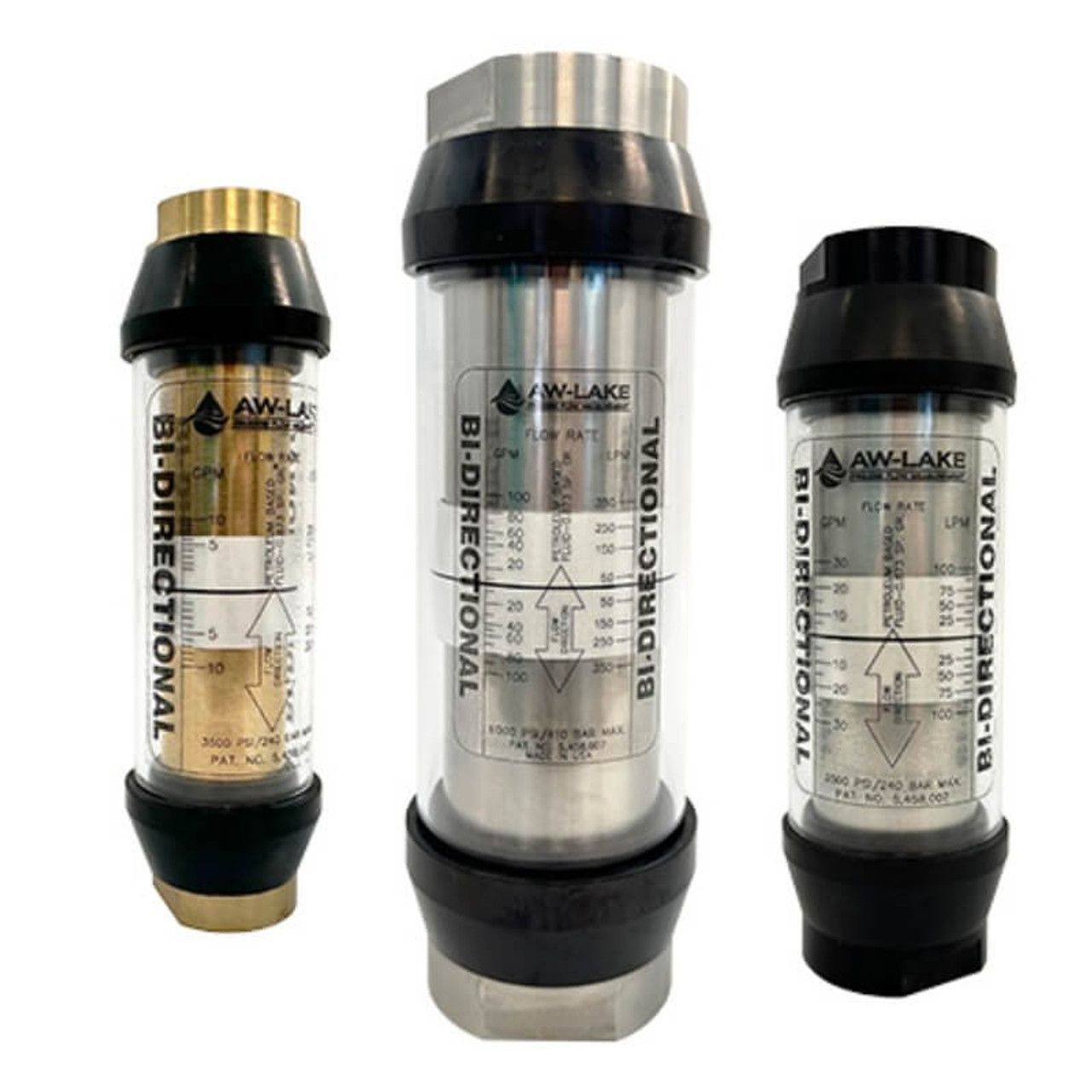

AW-Lake B3A6HF10BI
Bi-Directional Variable Area Flow Meter, Aluminum Housing, #8 SAE, O-ring seal, 3500 psi Max, 1 to 10 gpm Volume Flow Rate, Bi-Directional FlowNext Day Fittings is an authorized AW-Lake Distributor. If you have any questions about the AW-Lake B3A6HF10BI 's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official AW-Lake distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the AW-Lake product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your AW-Lake partner every step of the way. Product Type | Variable Area Flow Meter |
Style | Bi-directional |
Accuracy | ±4.0% of Full Scale |
Connection Size | 1/4" - 1/2" |
Connection Type | #8 SAE, O-ring seal |
Filtration Requirements | 74 micron filter or 200 mesh screen minimum |
Flow Measuring Range | 0.5 to 100 gpm |
Inch/Metric | Inch |
Medium | Oil |
Mounting Type | Horizontal, Vertical and Inverted |
Operating Pressure [Max] | 240 bar |
Operating Temperature [Max] | 116 °C |
Output Configuration | Bi-Directional Flow |
Repeatability | ±1% of full scale |
Standard Calibration Fluids | Oil meters: DTE 25® at 110°F (43°C), 0.873 sg |
Viscosity | Viscosities up to 110 cSt |
Volume Flow Rate [Liquid] | 1 to 10 gpm |
Housing Material | Aluminum |
Window Seals Material | Buna-N® (STD), PTFE |
Wetted Material | Anodized Aluminum |
Pipe Material | Polycarbonate |
Ports Material | Anodized Aluminum |
Seal Material | Buna-N® (STD), EPR, FKM or FFKM |
Transfer Magnet Material | PTFE coated Alnico |
All Other Internal Parts Material | Stainless Steel |
Length | 1.9" |
Height | 6.57" |
