Product Description

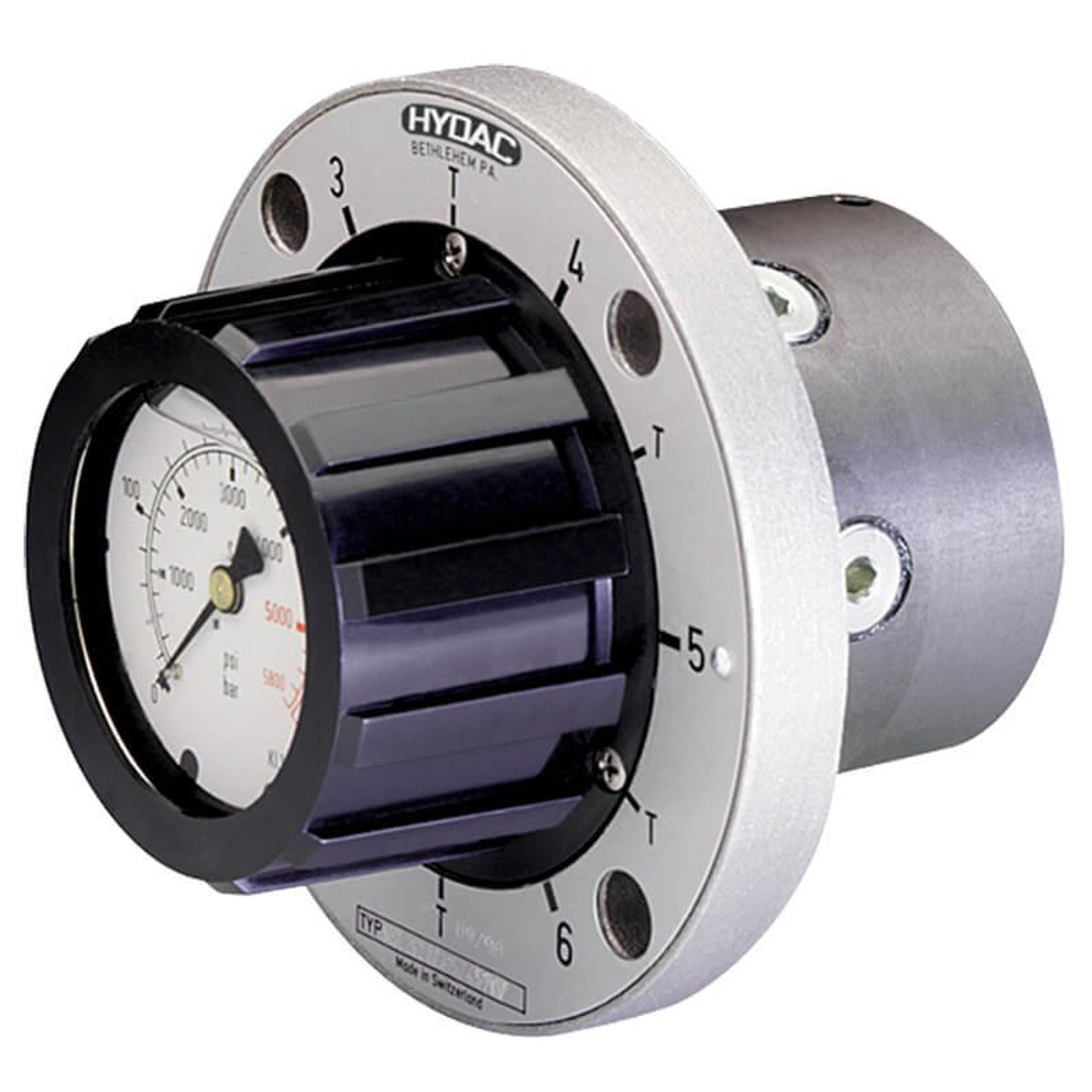

Hydac 2057946 Gauge Isolator Valves
MS5A2.1/12V Also Known As: 02057946Next Day Fittings is an authorized Hydac Distributor. If you have any questions about the Hydac 2057946 Gauge Isolator Valves's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Hydac distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Hydac product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Hydac partner every step of the way. Type | Gauge Isolator |
Style | Multi-Station |
Short Description | 5 Measuring Points, 1 Tank Connection |
Mounting Type | Flange Mounting |
Connection Type | SAE-4 |
Maintenance Port Size | 7/16 in. - 20 UNF |
Pressure Port Size | 7/16 in. - 20 UNF |
Tank Port Size | 7/16 in. - 20 UNF |
Tank Connection Pressure [Max] | 10 bar |
Seal Material | Viton |
Media | General Purpose Hydraulic Oil |
Pressure [Max] | 315 bar |
Operating Temperature [Max] | 70 °C |
Operating Temperature [Min] | -20 °C |
Operating Pressure [Max] | 315 bar |
Operating Pressure at (1 to 6) Measuring Points [Max] | 315 bar |
Overload Input Pressure | 315 to 400 bar |
Valve Operator | Built-in Pressure Gauge |
Mounting Guidelines | Flange mounting via four 1/4" bolts. It is recommended that the measuring points with pressures of over 1450 psi (100 bar) be arranged symmetrically. Ports not in use should be plugged. |
Mounting Orientation | Optional |
Accuracy | Built-in gauge accuracy is ±1.6% of the max. scale value at 68 °F (20 °C). The error per additional 50 °F (10 °C) temperature increase is +0.3% and 50 °F (10 °C) temperature reduction is -0.3%. Values are based on red scale indication. |
Type Number | 2 |
Weight | 4.05 lb |
Additional Information/Notes | Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print. |
