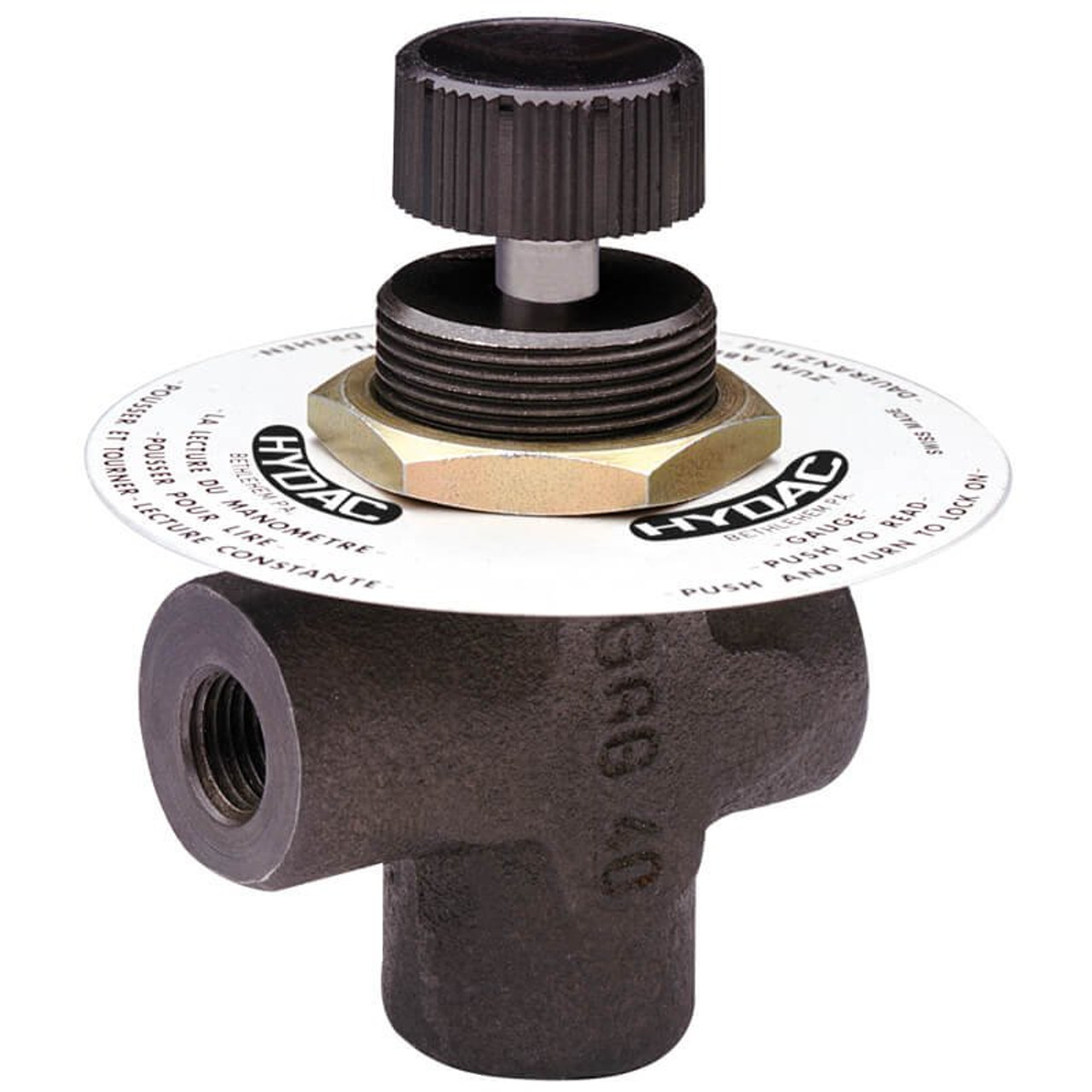

Hydac 2057940 Gauge Isolator Valves
MA1A1.X/5V Also Known As: 02057940Next Day Fittings is an authorized Hydac Distributor. If you have any questions about the Hydac 2057940 Gauge Isolator Valves's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Hydac distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Hydac product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Hydac partner every step of the way. Type | Gauge Isolator |
Style | Single Station |
Mounting Type | Panel Installation |
Connection Type | NPT |
Panel Thickness | .39" |
Maintenance Port Size | 1/4 in. NPT |
Pressure Port Size | 1/4 in. NPT |
Tank Port Size | 1/4 in. NPT |
Tank Connection Pressure [Max] | 10 bar |
Seal Material | Fluoroelastomer (Standard) |
Media | Mineral Oil |
Pressure [Max] | 350 bar |
Operating Temperature [Max] | 80 °C |
Operating Temperature [Min] | -20 °C |
Operating Pressure [Max] | 350 bar |
Valve Operator | Push/Rotating Control Knob |
Mounting Orientation | Horizontal or Vertical |
Type Number | 1 |
Weight | 0.88 lb |
Additional Information/Notes | Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print. |
