Product Description

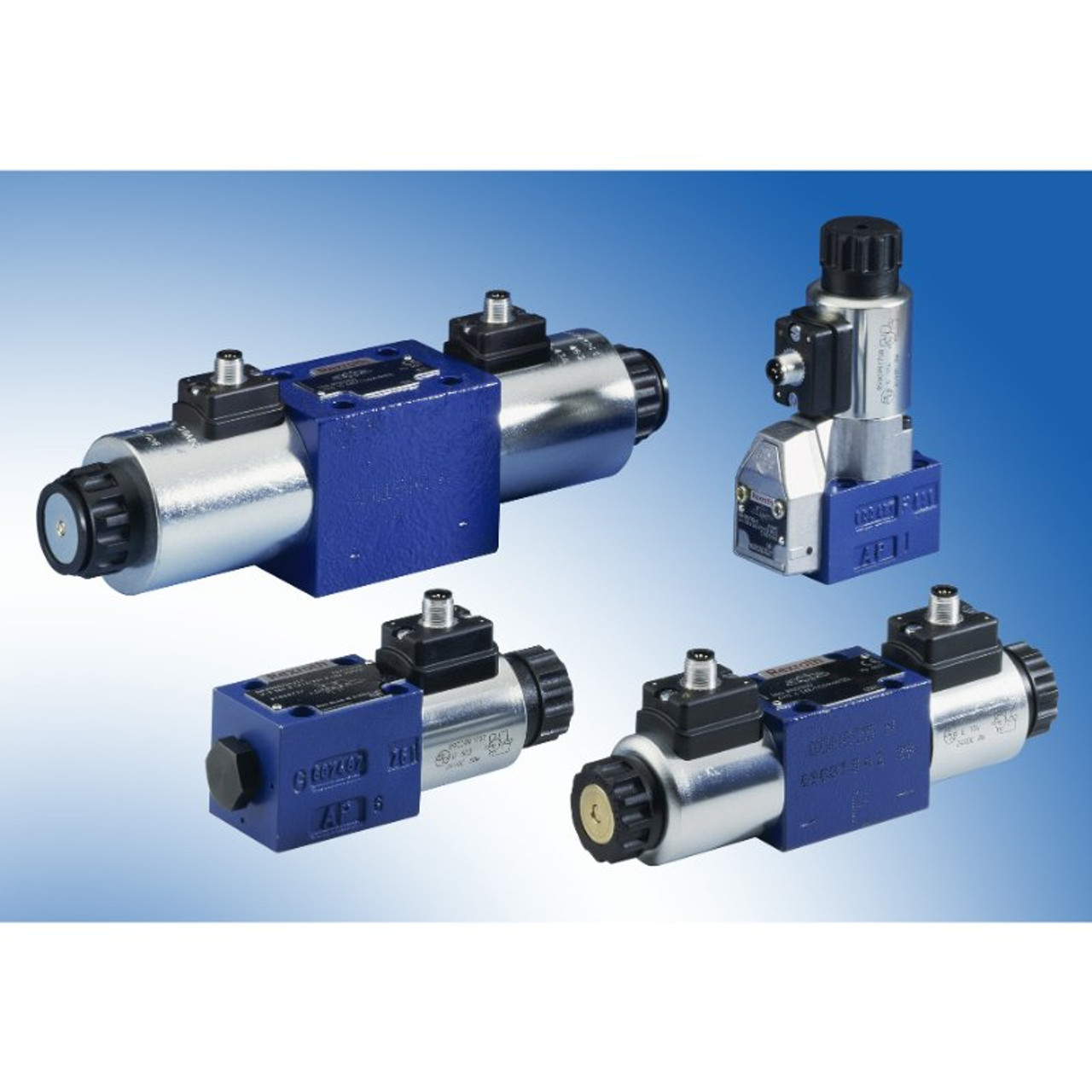

Bosch Rexroth R901219722 Hydraulic Directional Control Valves 4WE10D4X/CW440N9DA
Next Day Fittings is an authorized Bosch Rexroth distributor. If you have any questions about this product or it's availability, please call us at: 844-323-8752Bosch Rexroth industrial hydraulics solutions are crafted to conquer the most challenging conditions. Bosch Rexroth is synonymous with exceptional performance, steadfast reliability, and precise accuracy in the industrial hydraulics sector. Next Day Fittings takes pride in delivering Bosch Rexroth's top-tier hydraulics technology tailored for the rigorous demands of heavy-duty industries.4-way (4/2) directional control hydraulic direct-acting double solenoid valve (16gpm) with std. manual override - circuit diagram D46 - ATEX & IECEx compliant - Bosch Rexroth (WE series size 6...XE / component series 6X (60...69)) - 4WE 6 D46-6X/OFEW110RNXEZ2 - 110Vac solenoid (17W) - 350bar / 5076psi - 2-pin M20 connector with cable glnd. - NBR seals - Mounting on subplate (Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03) - 4-ports 2-positions - high-power wet-pin solenoid (with detachable coil) - mech. detent - equivalent to 4WE6D46-6X/OFEW110RNXEZ2 / 4WE6D466XOFEW110RNXEZ2R901053749 Bosch Rexroth Hydraulic Direct-Acting Double Solenoid Valve - 4WE6D46-6X/OFEW110RNXEZ2
Directional spool valves, direct operated, with solenoid actuation ? Type WE?XE
Type WE hydraulic directional valves are heavy-duty, solenoid actuated, direct operated spool valves. They control the start, stop, and direction of a flow. These directional valves basically consist of the housing; one or two electronic solenoids, the control spool; and are available with or without return springs or detents. A full array of spools are possible with variations in voltage and electrical connection, all within the program. Flow and pressure rates available to cover a wide range of applications. The duty cycle is 100% with switching frequency capability of 15000/hr for DC and 7200/hr for AC.
Features:
- Size 6
- Component Series 6X
- Max Operating Pressure 350 bar
- Max flow 70 l/min
- 4/3, 4/2 or 3/2 way versions
- For intended use in a potentially explosive atmosphere
- Porting Pattern according to ISO 4401-03-02-0-05
- Wet-pin AC or DC solenoids
- Electrical connection with individual connection and cable gland
- With Manual Override - optional
Product | Bosch Rexroth Hydraulic direct-acting double solenoid valve |
Model Code | 4WE6D46-6X/OFEW110RNXEZ2 |
Series / Family | WE series - size 6...XE / component series 6X (60...69) |
Valve Function | 4/2-way (4 ports / 2 positions), Double solenoid, Bistable |
Max. Flow | 60L/min |
Max Operating Pressure | 350bar |
Hydraulic Fluid Temperature Range | −20°C…+80°C |
Ambient Temperature Range | −20°C…+70°C |
Reset Method | Mechanical Detent |
Manual Override | Standard |
Solenoid | High-Power Wet-Pin with Detachable Coil |
Seal Material | NBR |
Connection Type | 2-pin M20 connector with cable gland |
Mounting Mode | Mounting on subplate (Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03) |
Power Consumption | 17W |
Current Consumption | 1A (nominal hold current) |
Control Voltage (AC) | 110Vac (50Hz/60Hz) |
Diagram | circuit diagram D46 |
Additional Info | ATEX & IECEx compliant |
Compliant with standard(s) | CE |
