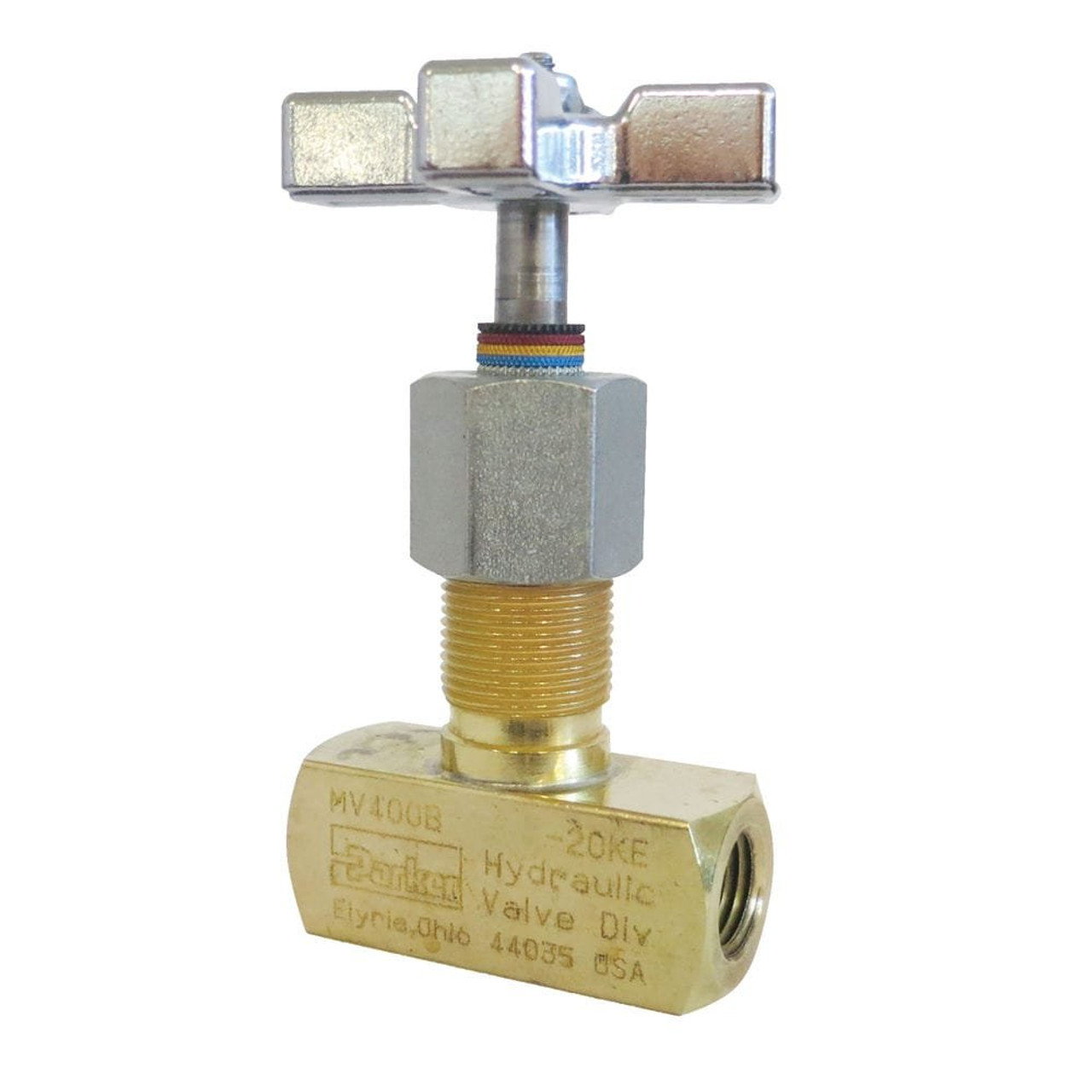

Parker 9MV600S In-Line Precision Needle Valve MV Series
Next Day Fitting is an authorized Parker Distributor. If you have any questions about this product's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Parker distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Parker Hannifin product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Parker partner every step of the way.9MV600S - In-Line Precision Needle Valve - MV SeriesParker's MV series valves allow extremely close control of fluids used in actuating and governing equipment. The needle allows fine adjustment at low flow by using the first three turns of the adjusting knob. The next three turns open the valve to full flow, and provides standard throttling adjustment.
Markets:- Factory Automation
- Machine Tools
- Marine
- Material Handling
- Mining
- Miscellaneous Industrial
- Miscellaneous Manufacturing
- Molding
- Oil &Gas
- Power Generation
- Vehicle Assembly Facilities
Features/Benefits:
- Port options include NPT and SAE
- Material offerings are brass and steel
- Available in an in-line or right angle style
- Port sizes are available in 7 sizes from 1/8" to 1"
- MVK mounting kits make panel mounting simple
- High efficiency O-ring stem seal eliminates packing
- Fine and micro-fine needles available for extremely fine control
- The exclusive "Colorflow" color-band provide an accurate visual indication of setting
Applications:
- Suitable for general hydraulic applications
| Product Name | In-Line Precision Needle Valve - MV Series |
| Style | Metering Valve |
| Maximum Operating Pressure (psi) | 5000 |
| Maximum Operating Pressure (bar) | 345 |
| Media | Oil |
| Maximum Flow (lpm) | 30 |
| Maximum Operating Temperature (F) | +250_1/2__ |
| Minimum Operating Temperature (F) | -40_1/2__ |
| Maximum Operating Temperature (C) | -40_1/2__ |
| Minimum Operating Temperature (C) | +121_1/2__ |
| Brand | Colorflow |
| Maximum Flow (gpm) | 8 |
