Product Description

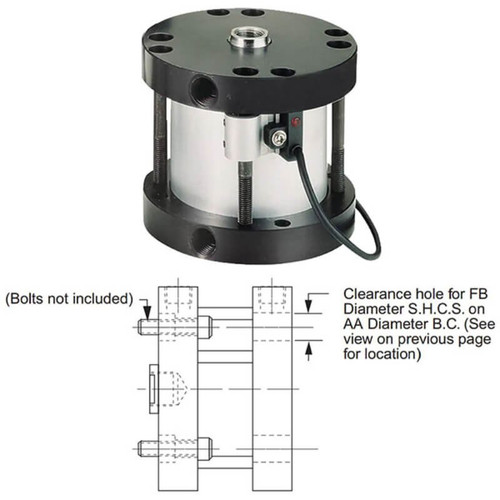

Parker 4.004RLP90.25 Air Cylinders
Double-acting compact Aluminium pneumatic cylinder with Buna-N piston quad seal + Anodized Aluminium head & cap - 4" bore (B4") - 1/4" stroke (S1/4") - 2 x 3/8" NPT threaded pneumatic ports - 3/4"-16 UNF female threaded rod-end - Cap bolt mounting - 1" rod diameter - equivalent to 4004RLP9025Next Day Fittings is an authorized Parker Distributor. If you have any questions about the Parker 4.004RLP90.25 Air Cylinders's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Parker distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Parker product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Parker partner every step of the way. Function | Double-acting compact Aluminium pneumatic cylinder |
Shape | Cylindrical |
Design | Buna-N piston quad seal |
Material | Hard-coated Aluminium body |
Pressure | 145psig (max. air service) |
Ambient Air Temperature | -10°F...+200°F / -23°C...+93°C |
Connection Type | 2 x 3/8" NPT threaded pneumatic ports |
Stroke Length | 1/4" stroke |
Bore Size | 4" bore |
Diameter | 1" rod |
Mounting | Cap bolt mounting |
Chemical Resistance | Corrosion resistance |
