    Product Description

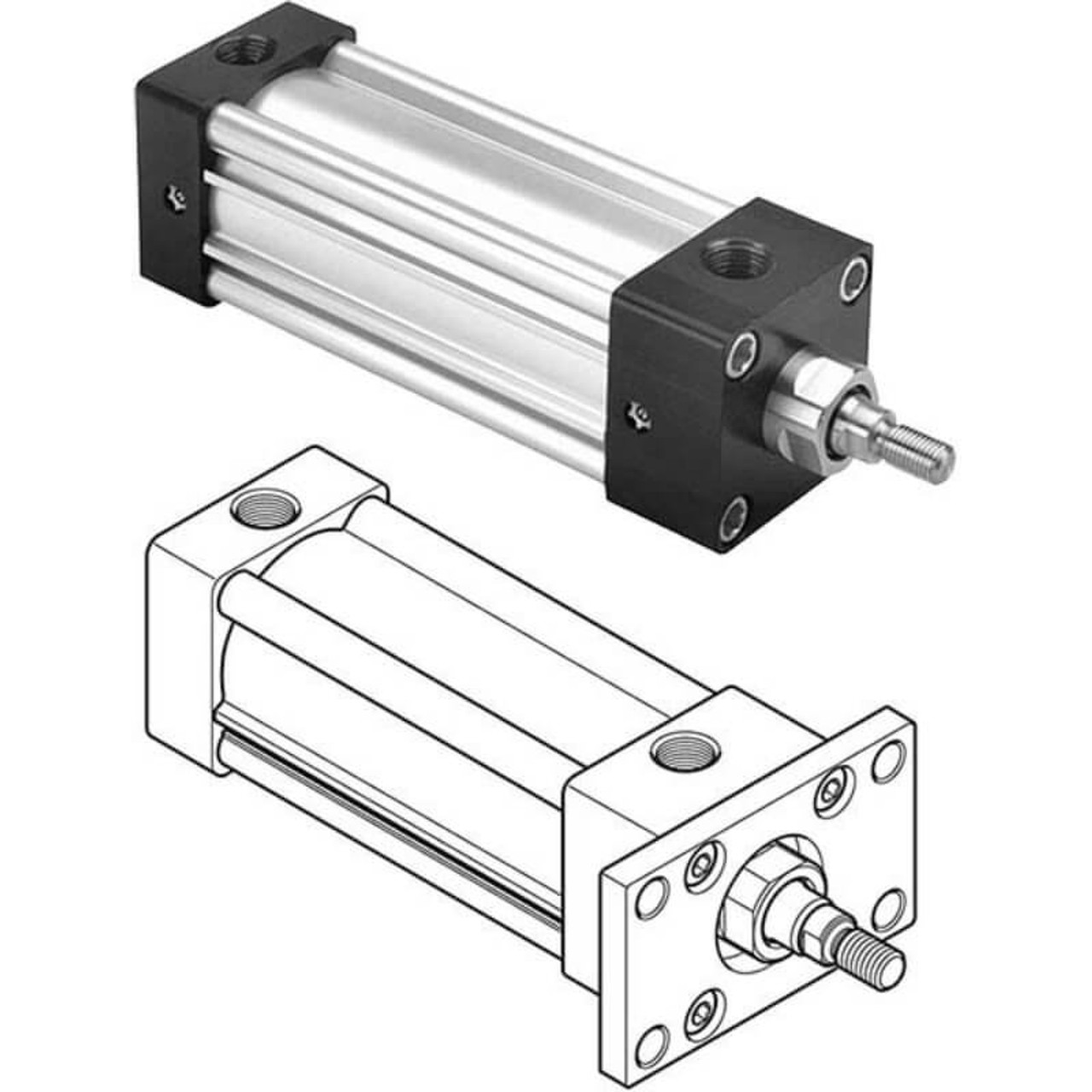

    Parker 2.00J4MA3U14AC09.00 Air Cylinders

    Double-acting non-lube NFPA tie-rod pneumatic cylinder with piston magnet + "LipSeal" piston + small male rod-end thread + cushion at cap end only - 2" bore (B2") - 9" stroke (S9") - 2 x 3/8" NPT threaded pneumatic ports - 7/16"-20 UNF male small threaded rod-end - Head rectangular flange mounting (NFPA MF1) - 5/8" no.1 rod diameter - NFPA interchangeable model - equivalent to 200J4MA3U14AC0900

    Next Day Fittings is an authorized Parker Distributor. If you have any questions about the Parker 2.00J4MA3U14AC09.00 Air Cylinders's technical information or availability please call us at: 844-323-8752
    Next Day Fittings is an official Parker distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Parker product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Parker partner every step of the way.





    Function

    Double-acting non-lube NFPA tie-rod pneumatic cylinder

    Shape

    Rectangular

    Design

    piston magnet
    "LipSeal" piston
    small male rod-end thread
    cushion at cap end only
    NFPA interchangeable model
    Repairable

    Material

    Anodized Aluminium cylinder body
    Aluminium piston with nylon wear band
    Composite piston bearing
    Bronze gland
    Bronze rod bearing
    Hard Chrome-plated Carbon steel piston rod

    Pressure

    250psig (max. air service)
    17bar (max. air service)

    Ambient Air Temperature

    -10°F...+165°F / -23°C...+74°C

    Connection Type

    2 x 3/8" NPT threaded pneumatic ports
    7/16"-20 UNF male small threaded rod-end

    Stroke Length

    9" stroke

    Bore Size

    2" bore

    Diameter

    5/8" no.1 rod

    Mounting

    Head rectangular flange mounting (NFPA MF1)

    Chemical Resistance

    Corrosion resistance

    Compliant with Standard(s)

    RoHS
