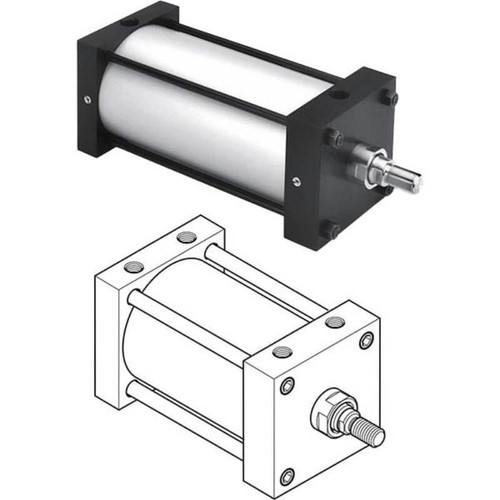

    Parker 1P4MA0033273 Air Cylinders

    Double-acting non-lube NFPA tie-rod pneumatic cylinder with "LipSeal" piston + short female rod-end thread - special model - 6" bore (B6") - 8" stroke (S8") - 2 x 3/4" NPT threaded pneumatic ports - 1"-14 UNF female short threaded rod-end - Sleeve nut with side tap mounting (NFPA MX5/MS4) - 1-3/8" no.1 rod diameter - NFPA interchangeable model - based on model 6.00TEF4MAUS19A08.00 - equivalent to 600TEF4MAUS19A0800

    Next Day Fittings is an authorized Parker Distributor. If you have any questions about the Parker 1P4MA0033273 Air Cylinders's technical information or availability please call us at: 844-323-8752
    Next Day Fittings is an official Parker distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Parker product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Parker partner every step of the way.





    Function

    Double-acting non-lube NFPA tie-rod pneumatic cylinder

    Shape

    Rectangular

    Design

    "LipSeal" piston
    short female rod-end thread
    NFPA interchangeable model
    based on model 6.00TEF4MAUS19A08.00
    special model
    Repairable

    Material

    Hard-anodized Aluminium cylinder body
    Aluminium piston
    Composite piston bearing
    Bronze gland
    Bronze rod bearing
    Hard Chrome-plated Carbon steel piston rod

    Pressure

    250psig (max. air service)
    17bar (max. air service)

    Ambient Air Temperature

    -10°F...+165°F / -23°C...+74°C

    Connection Type

    2 x 3/4" NPT threaded pneumatic ports
    1"-14 UNF female short threaded rod-end

    Stroke Length

    8" stroke

    Bore Size

    6" bore

    Diameter

    1-3/8" no.1 rod

    Mounting

    Sleeve nut with side tap mounting (NFPA MX5/MS4)

    Chemical Resistance

    Corrosion resistance

    Compliant with Standard(s)

    RoHS
