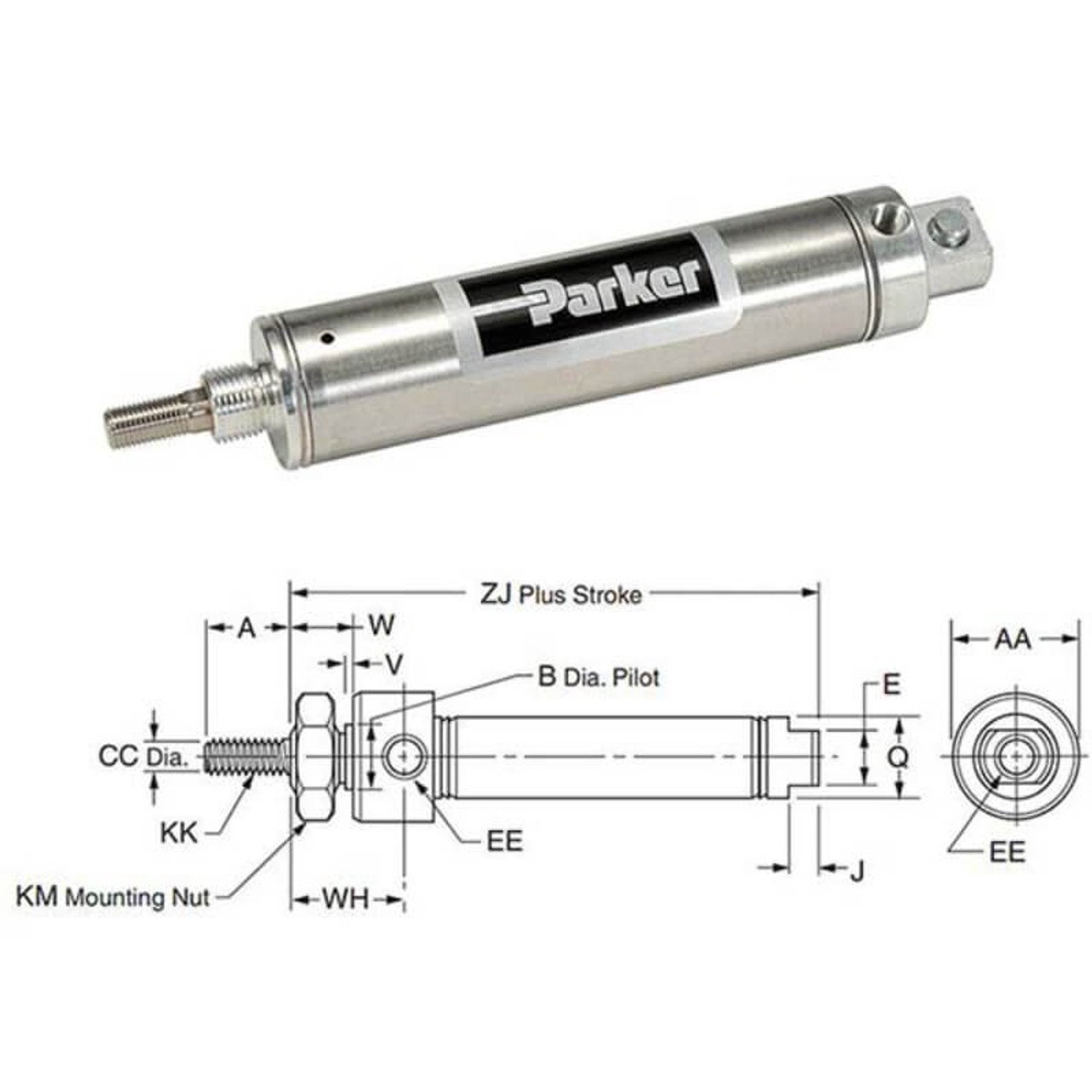

Parker 0.75DSR01.50 Air Cylinders
Double-acting stainless steel pneumatic cylinder with "LipSeal" piston + Aluminium head and cap - 3/4" bore (B3/4") - 1-1/2" stroke (S1-1/2") - 2 x 1/8" NPT threaded pneumatic ports - 1/4"-28 UNF male threaded rod-end - Nose mounting - 1/4" rod diameter - 304 stainless steel cylinder body - equivalent to 075DSR0150Next Day Fittings is an authorized Parker Distributor. If you have any questions about the Parker 0.75DSR01.50 Air Cylinders's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Parker distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Parker product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Parker partner every step of the way. Function | Double-acting stainless steel pneumatic cylinder |
Shape | Cylindrical |
Design | "LipSeal" piston |
Material | 304 stainless steel cylinder body |
Pressure | 250psig (max. air service) |
Ambient Air Temperature | -10°F...+165°F / -23°C...+74°C |
Connection Type | 2 x 1/8" NPT threaded pneumatic ports |
Stroke Length | 1-1/2" stroke |
Bore Size | 3/4" bore |
Diameter | 1/4" rod |
Mounting | Nose mounting |
Chemical Resistance | Corrosion resistance |
