Product Description

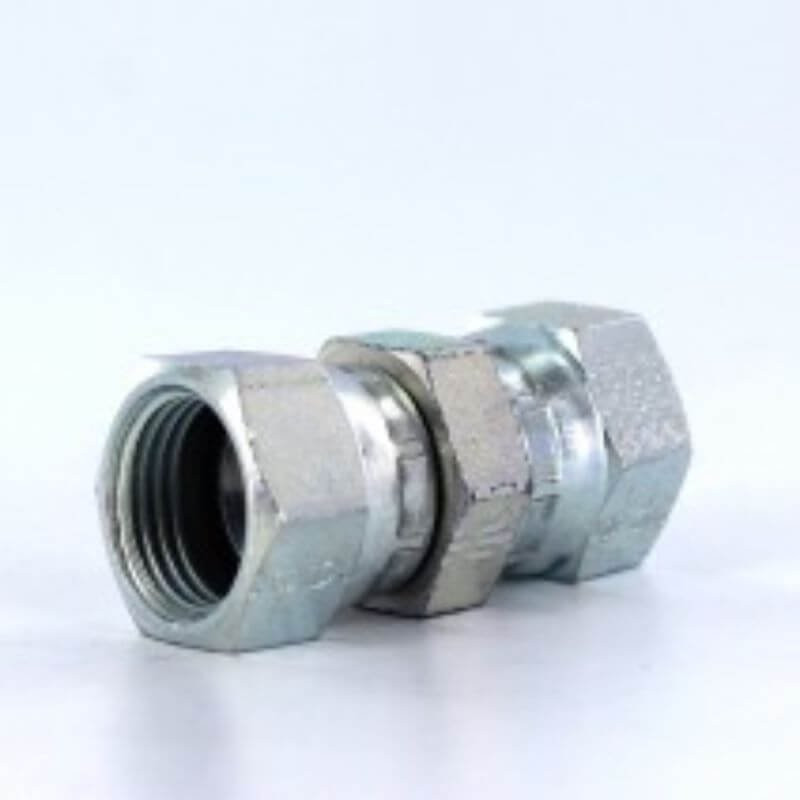

The Parker 4 HX6-S is a Triple-Lok swivel nut union fitting in steel, designed for 1/4 JIC (37 flare) hydraulic and fluid power connections. This straight connector provides robust, reliable sealing for hose, tubing, manifolds, and equipment in high-pressure systems.
- Type: Triple-Lok swivel nut union
- Material: Steel
- Size: 1/4 JIC (37 flare)
- Maximum Pressure: 7500 PSI
- Metal to metal seating with blowout proof design
- Vibration resistant construction
- Unlimited remakeability for field maintenance
- Meets SAE J514 and ISO 8434-2 specifications
The Triple-Lok design consists of three parts, body, nut, and sleeve, that create an optimal seal by sandwiching and tightening the flared tube end between the fitting nose and sleeve. This proven configuration exceeds the burst pressure of system tubing and is one of the most popular fitting designs worldwide. Available at Next Day Fittings for fast industrial delivery.
