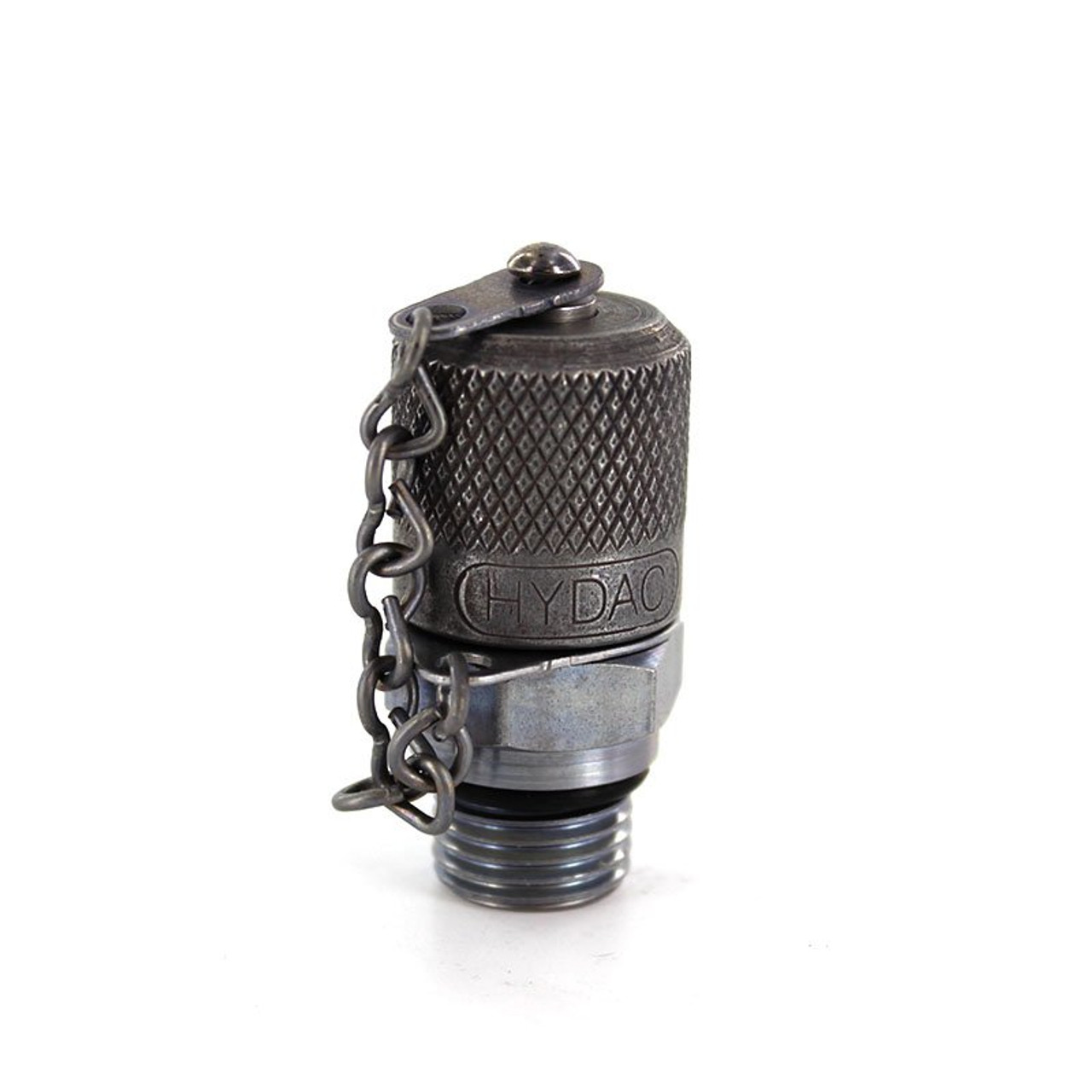

Hydac 6003737 Test Fitting 2103-01-53.00Hd (9/16-18 Unf)
Next Day Fittings is an authorized Hydac distributorAs an official Hydac distributor, Next Day Fittings delivers our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Hydac Test Fittings product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is committed to being your Hydac Test Fittings partner every step of the way.Hydac 6003737 Test Fitting 2103-01-53.00Hd (9/16-18 Unf)Manufacturer:HydacManufacturer Part Number:6003737| Type | Test Points |
| Series | 1620 |
| Connection Type | UNF |
| Connection Size | 9/16-18 |
| Material | Carbon Steel |
| Seal Material | Buna-N |
| Media | Suitable for Petroleum-Based Fluids and Gaseous Media |
| Operating Pressure [Max] | 630 bar 9000 psi |
| Cap Type | Zinc-Plated |
| Cap Material | Metal |
| Finish | Zinc Plated |
| Wrench Size | 19 mm |
| Dimension H | 36 mm |
| Dimension T | 10 mm |
| Additional Information/Notes | Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print. For port configuration drawings contact HYDAC. All Test Points have a male connection thread (G) |
