Product Description

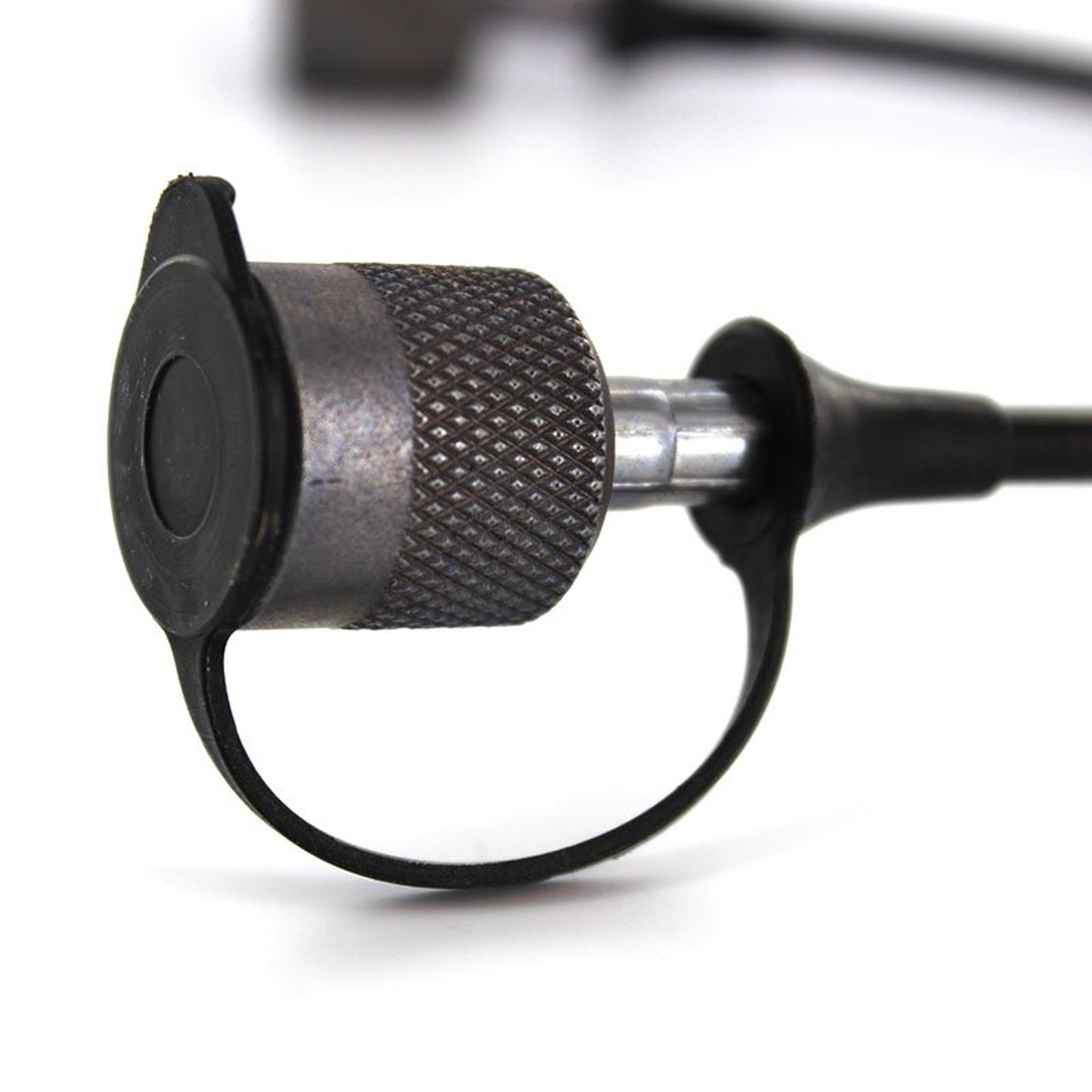

Hydac 6003724 Test Hose S11F-Ac-Ac-0030
Next Day Fittings is an authorized Hydac distributorAs an official Hydac distributor, Next Day Fittings delivers our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Hydac Test Hoses product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is committed to being your Hydac Test Hoses partner every step of the way.Hydac 6003724 Test Hose S11F-Ac-Ac-0030Manufacturer:HydacManufacturer Part Number:6003724| Type | Micro Bore Flexible Hoses |
| Size | M16 x 2 |
| Connection Type | 1620 Female Connection |
| Material | Polyamide |
| Operating Temperature [Max] | 50 °C 122 °F |
| Operating Pressure [Max] | 630 bar 9000 psi |
| Burst Pressure | 630 bar 9000 psi |
| Reinforcement Type | Braid |
| Suitable for | Petroleum-Based Fluids |
| Cover Material | Polyamide |
| Reinforcement Material | Polyester |
| Cap Material | Plastic Dust Cap |
| Bend Radius | 20 mm |
| Inside Diameter | 0.08" 2 mm |
| Outside Diameter | 0.19" 5 mm |
| Pressure Utilization Factor for Hoses at 122 °F (50 °C) Operating Temperature and 9000 psi Maximum Pressure | 100% |
| Pressure Utilization Factor for Hoses at 176 °F (80 °C) Operating Temperature and 7740 psi Maximum Pressure | 86% |
| Pressure Utilization Factor for Hoses at 212 °F (100 °C) Operating Temperature and 6930 psi Maximum Pressure | 77% |
| Length | 12" 300 mm |
| Additional Information/Notes | Custom Hose Assemblies Available: NPT Male Thread, NPT Female Thread, JIC Male Hose, JIC Female swivel hose ends |
