Product Description

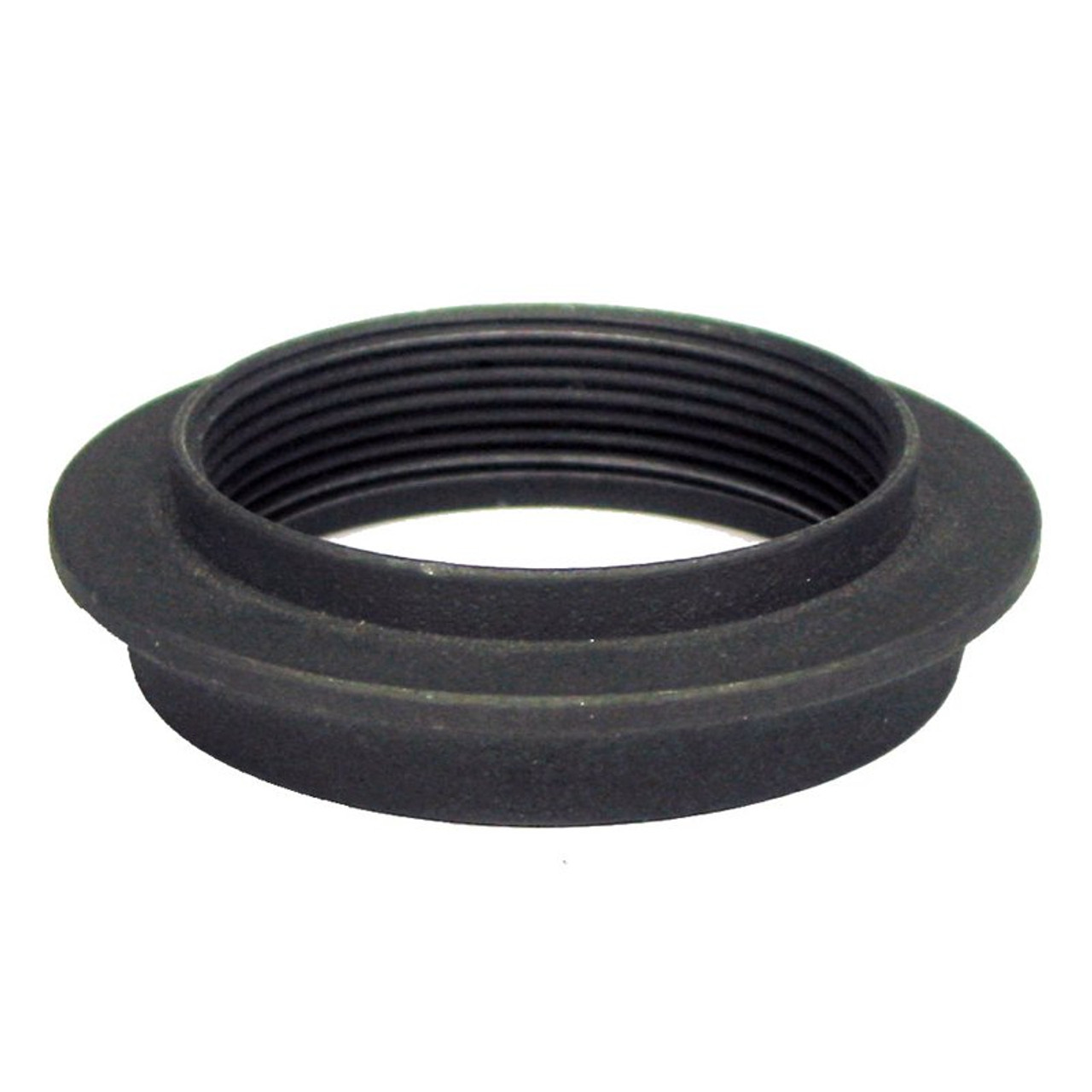

Hydac 2078483 Weld Flanges
HTMS TWF-32 Also Known As: 02078483Next Day Fittings is an authorized Hydac Distributor. If you have any questions about the Hydac 2078483 Weld Flanges's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Hydac distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Hydac product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Hydac partner every step of the way. Type | Tank Weld Flange |
Size | 2-1/2 in. - 12 |
Connection Type | SAE |
Connection Size | SAE 32 |
Material | Low Carbon Steel |
Use With | HTMS Hose Barb, SAE Strainers |
Diameter B | 2.63" |
Diameter E | 2.88" |
Diameter | 3.5" |
Length | 0.84" |
Install Length | 0.59" |
Dimension D | 0.59" |
Additional Information/Notes | Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print. |
