Product Description

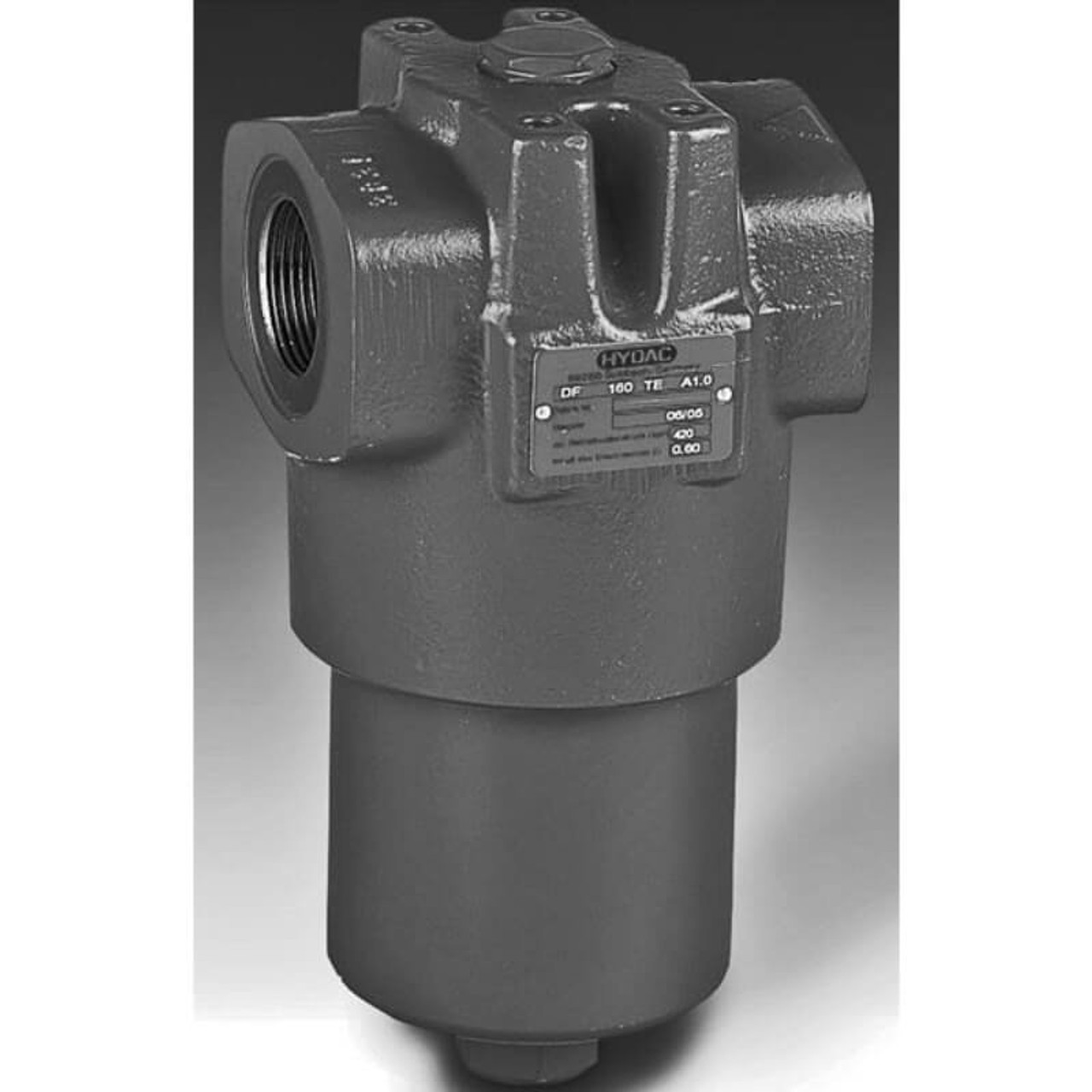

Hydac 2071721 Pressure Filters
In-Line Industrial Filter - DF Series (6090 PSI) Also Known As: 02071721, DFBN/HC110TC10B1.0/12B6Next Day Fittings is an authorized Hydac Distributor. If you have any questions about the Hydac 2071721 Pressure Filters's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Hydac distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Hydac product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Hydac partner every step of the way. Size | 110 |
End Size | 3/4 in. |
End Type | SAE Straight Thread O-ring Boss Ports |
Filter Rating | 10 µm |
Flow | 29 gpm |
Flow | 110 L/Min |
Head Material | Ductile Iron |
Indication Type | B = Pop-up indicator (auto reset) |
Material | Optimicron® |
Medium | Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected. |
Mounting Type | Inline Filter |
Max Operating Pressure | 420 bar |
Max Operating Pressure | 6090 psi |
Max Operating Temperature | 100 °C |
Max Operating Temperature | 212 °F |
Min Operating Temperature | -10 °C |
Min Operating Temperature | 14 °F |
Bowl Material | Steel |
Cap Material | Steel |
Diameter | 3.39 in |
Diameter | 86 mm |
Fatigue Pressure | 420 bar |
Fatigue Pressure | 6090 psi |
Height | 9.88 in |
Height | 251 mm |
Seal Material | Nitrile Rubber (NBR) |
Width | 3.54 in |
Width | 90 mm |
