Product Description

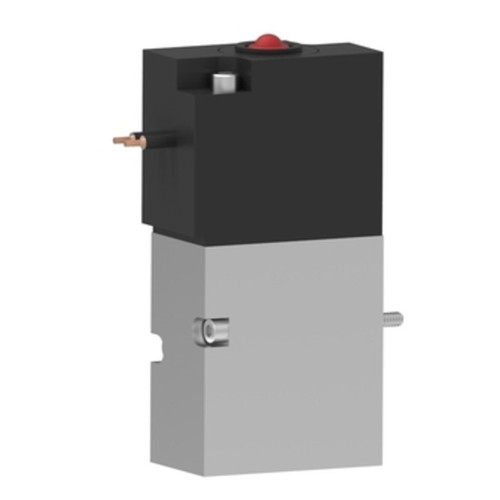

Humphrey M4101205060 Pneumatic Directional Control Valves
4-Way, 2-Position, Single Solenoid, Multi-Purpose, Manifold Type Ports, Aluminum Body, NBR Seals, 120VAC, 24" Electrical Leads Over Port 2, Non-Locking Manual Override, 28"Hg-125PSI Pressure Range Part # Variations: M410 120VAC 50/60, M410-120VAC, M410 120VAC Next Day Fittings is an authorized Humphrey Distributor. If you have any questions about the Humphrey M4101205060 Pneumatic Directional Control Valves's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Humphrey distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Humphrey product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Humphrey partner every step of the way.1/8 NPSF, 19mm wide 410 Series is compact, high flow and low cost. Direct acting, the 4-port solenoid valve can be operate reliable from vacuum ~ 125psi. Multi-purpose. Pipe valve as normally closed, normally open, diverter or selector 3-port valve functions, or as 4-way. Ideal for reliable control of double acting cylinders up to 1-1/4" bore (32mm). Consider optional exhaust flow control (code 70). Produced to Humphrey's industry leading, stringent leakage requirements. Made in the USA. RoHS and REACH compliant. Made in the USA.
Manufacturer PartNumber | M4101205060 |
Number of Ports | 4 ports |
Number of Positions | 2 positions |
Valve Function | 4-way Single Solenoid, Multi-purpose |
Piping Type | Inline, Direct Piping |
Coil Entry Orientation | Standard, over port 2 |
Size (in) HxWxD | 2.75 x 0.75 x 1.25 |
Media | Air, Inert Gas, Vacuum |
Type of Operation | Direct Acting Type |
Flow Capacity @ 40psi | 0.14 |
Lubrication | Not Required |
Media Filtration | 40 Micron Recommended |
Pressure Range (psi) | -28"Hg-125 |
Response Time - ON/OFF (ms) | 12/20 |
Operating Speed (cycles/min) | 600 |
Ambient Temperature Range (?F) | 32~125 |
Wetted Materials | Anodized Aluminum, Brass, SST, Buna N, Acetal |
Weight (oz) | 4 |
Electrical Entry | Lead Wires - 24 inches |
Voltage | 120/50/60 |
Voltage Range | +10%, -15% |
Power Consumption (w) | 4.5 |
Manual Override | Non-Locking |
Compliance | RoHS |
