Product Description

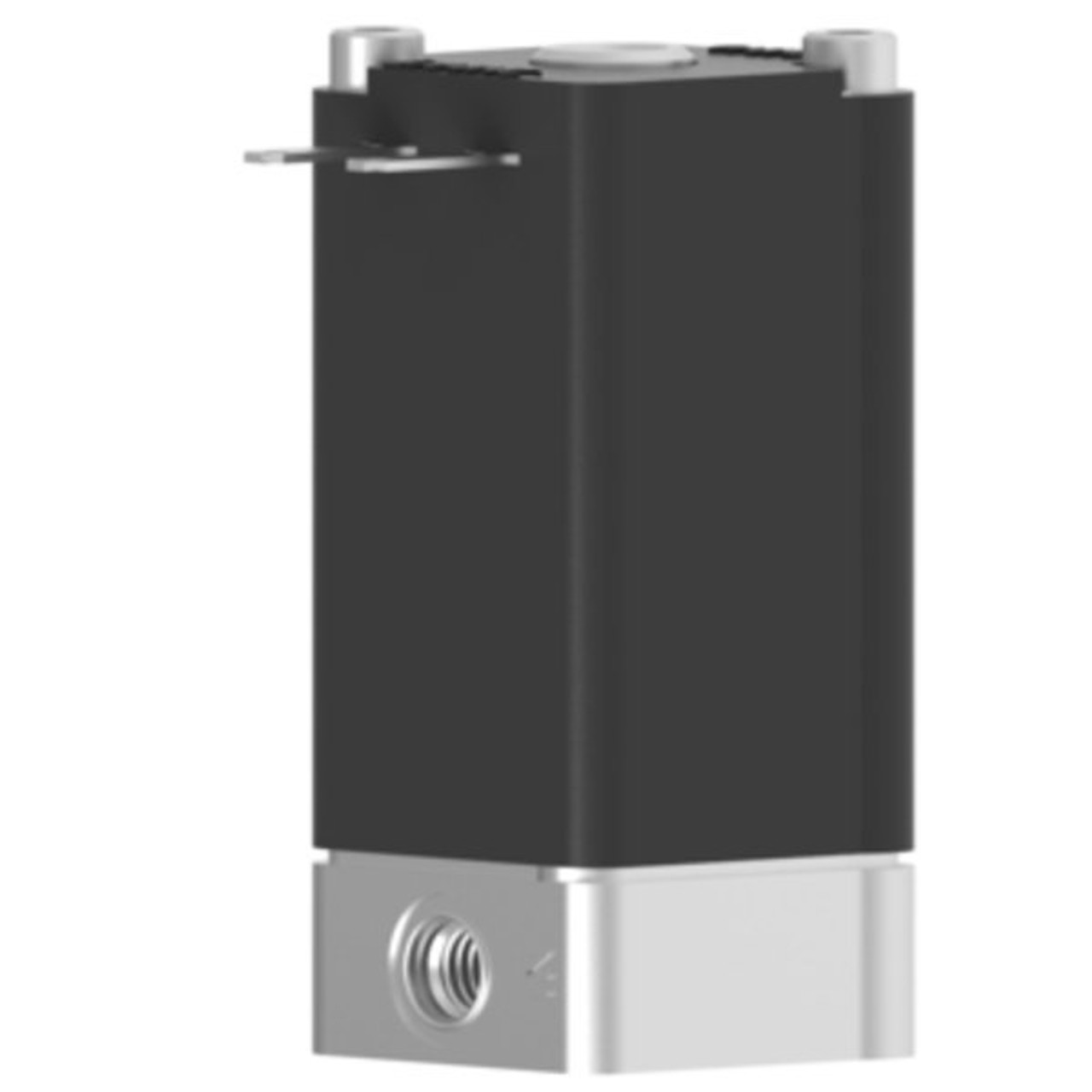

Humphrey B3E112VDC Pneumatic Directional Control Valves
Mini-Mizer Series, 3-Way, 2-Position, Single Solenoid, Normally Closed, 10-32 UNF Ports, NBR Seals, 12VDC, Spade Electrical Connections Over Port 2, 0-100PSI Pressure Range Part # Variations: B3E1-12VDC, B3E1 12VDC Next Day Fittings is an authorized Humphrey Distributor. If you have any questions about the Humphrey B3E112VDC Pneumatic Directional Control Valves's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Humphrey distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Humphrey product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Humphrey partner every step of the way.Direct acting, 3-port Mini-Mizer solenoid valve consumes only 1/2 watt power consumption. Perfect as a pneumatic interface to PC/PLC control. Produced to Humphrey's industry leading, stringent leakage requirements. Available as stand alone inline, or as manifold mount, with lead wire, DIN or spade electrical entry. Made in the USA.
Manufacturer PartNumber | B3E112VDC |
Number of Ports | 3 ports |
Number of Positions | 2 positions |
Valve Function | Single Solenoid, Normally Closed |
Piping Type | Inline, Direct Piping |
Media | Air, Inert Gas |
Type of Operation | Direct Acting Type |
Flow Capacity @ 40psi | 0.01 |
Port Size | 10-32 UNF |
Lubrication | Not Required |
Media Filtration | 40 Micron Recommended |
Pressure Range (psi) | 0-100 |
Response Time - ON/OFF (ms) | 5/6 |
Operating Speed (cycles/min) | 600 |
Ambient Temperature Range (?F) | 0~150 |
Wetted Materials | SST, Nickel plated steel, Brass, Buna N |
Weight (oz) | 2 |
Electrical Entry | Spade Terminals |
Voltage | 12VDC |
Voltage Range | +10%, -15% |
Power Consumption (w) | 0.5 |
Compliance | RoHS |
Approx Size (in) HxWxD | 2 x 0.88 x 0.88 |
