Product Description

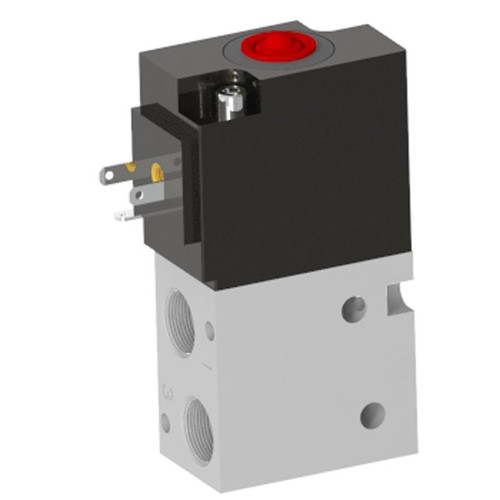

Humphrey 31039RC1205060 Pneumatic Directional Control Valves
310-39-RC-120VAC, 3-Way, 2-Position, Single Solenoid, Multi-Purpose, 1/8" NPT, Aluminum Body, NBR Seals, 120VAC, DIN Industrial C Electrical Connection Over Port 1 (HS2 Connector Not Included), Non-Locking Man Ovrd, 0-125PSI RangeNext Day Fittings is an authorized Humphrey Distributor. If you have any questions about the Humphrey 31039RC1205060 Pneumatic Directional Control Valves's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Humphrey distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Humphrey product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Humphrey partner every step of the way.Manufacturer PartNumber | 31039RC1205060 |
Number of Ports | 3 ports |
Number of Positions | 2 positions |
Valve Function | Single Solenoid, Multi-purpose |
Piping Type | Inline, Direct Piping |
Coil Entry Orientation | Rotated, over port 1 |
Size (in) HxWxD | 2.38 x 0.75 x 1.25 |
Media | Air, Inert Gas |
Type of Operation | Direct Acting Type |
Flow Capacity @ 40psi | 0.17 |
Port Size | 1/8 NPSF |
Lubrication | Not Required |
Media Filtration | 40 Micron Recommended |
Pressure Range (psi) | 0-125 |
Response Time - ON/OFF (ms) | 12/20 |
Operating Speed (cycles/min) | 600 |
Ambient Temperature Range (?F) | 32~125 |
Wetted Materials | Anodized Aluminum, Brass, SST, Buna N, Acetal |
Weight (oz) | 4 |
Electrical Entry | DIN style, Micro Type C (9.4mm) |
Voltage | 120/50/60 |
Voltage Range | +10%, -15% |
Power Consumption (w) | 4.5 |
Manual Override | Non-Locking |
Compliance | RoHS |
Options Included | Rotated Coil |
