Product Description

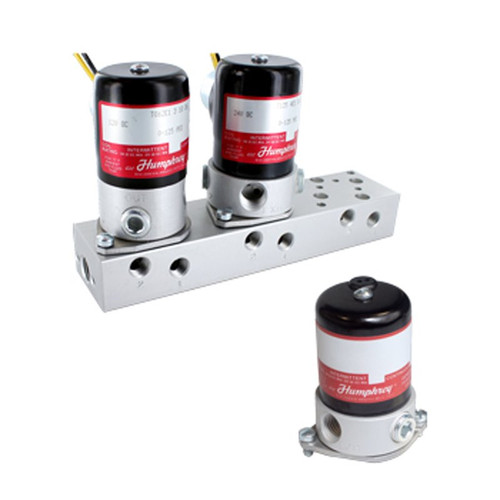

Humphrey 1254E121701205060 Pneumatic Directional Control Valves
Tyna-Myte Valve, 1/8" Orifice, 4-Way, 2-Position, Single Solenoid, Spring Return, 1/4" NPT Ports, Exhaust Speed Control, Aluminum Body, NBR Seals, Mounting Base, 120VAC, Grommet Electrical Entry, 24" Leads, 0-125PSI Pressure RangeNext Day Fittings is an authorized Humphrey Distributor. If you have any questions about the Humphrey 1254E121701205060 Pneumatic Directional Control Valves's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Humphrey distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Humphrey product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Humphrey partner every step of the way.Manufacturer PartNumber | 1254E121701205060 |
Number of Ports | 4 ports |
Number of Positions | 2 positions |
Valve Function | 4-way Single Solenoid, Spring Return |
Piping Type | Inline, Direct Piping |
Media | Air, Inert Gas |
Type of Operation | Direct Acting Type |
Flow Capacity @ 40psi | 0.27 |
Port Size | 1/4 NPSF |
Pressure Range (psi) | 0-125 |
Response Time - ON/OFF (ms) | 3/12 |
Operating Speed (cycles/min) | 600 |
Wetted Materials | Anodized Aluminum, Brass, Buna N |
Weight (oz) | 12 |
Electrical Entry | Lead Wires - 24 inches |
Voltage | 120/50/60 |
Voltage Range | +10%, -15% |
Power Consumption (w) | 8.2 |
Lubrication | Not Required |
Media Filtration | 40 Micron Recommended |
Ambient Temperature Range (?F) | -30~150 |
Options Included | Mounting base, EXH port speed control |
