Product Description

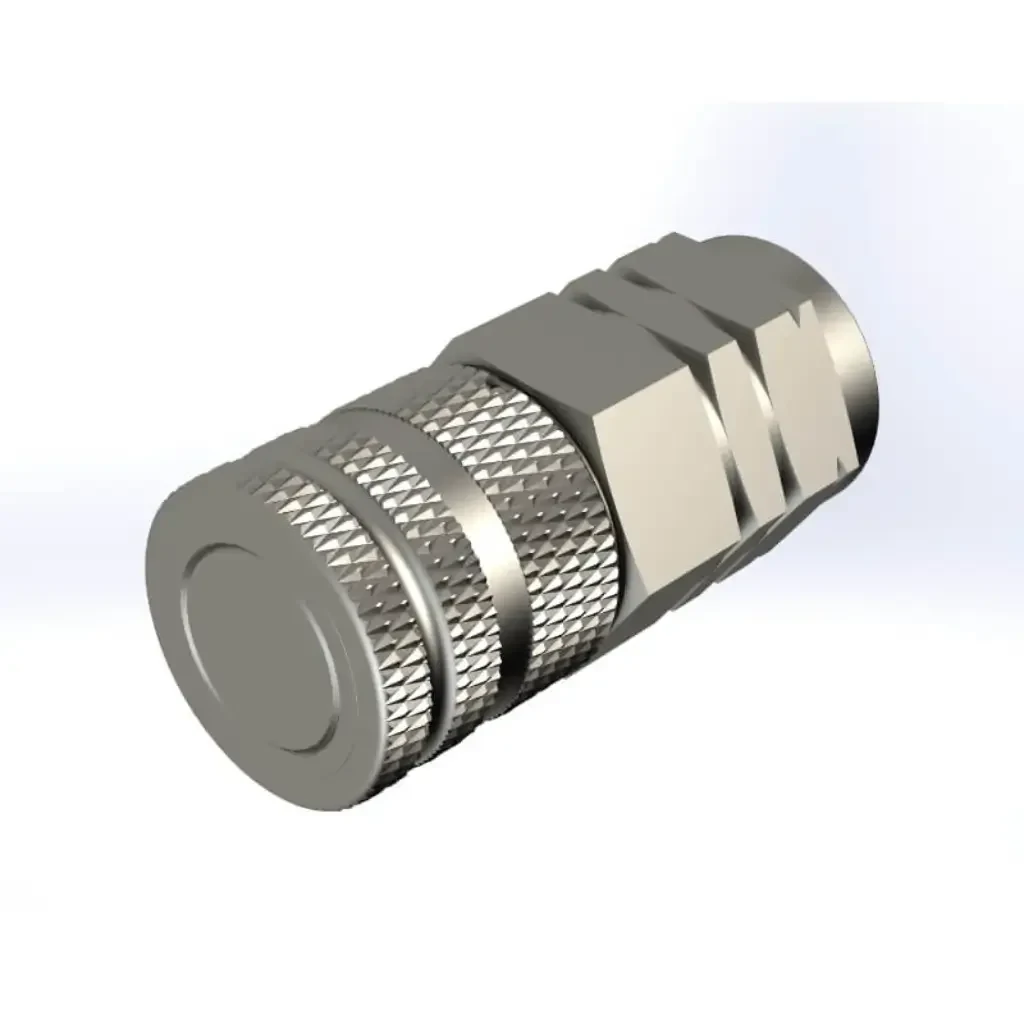

The Holmbury HQ10-F-08N is a flat face coupler from the HQ Series, designed for leak-free performance in high-pressure applications. Built to ISO 16028 standards, this coupler features a flat face design that enables easy cleaning and prevents fluid loss during disconnection.
- Maximum working pressure: 375 bar
- Rated flow: 23 LPM
- Construction material: Carbon steel with zinc nickel plating
- Seals: NBR and PTFE
- Temperature range: -40 to 106 degrees C
- Safety locking sleeve to prevent accidental disconnection
- Minimal air and contaminants allowed during connection
- Weight: 0.65 kg
Ideal for high-pressure pulse applications, construction plant equipment, mobile equipment, general industrial use, agricultural applications, and skid steer loaders. Compatible with crossover parts including Dixon 3HTF4, Parker FEM371-8FP, and Faster 2FFN38 GAS F. Available at Next Day Fittings for fast industrial delivery.
