Product Description

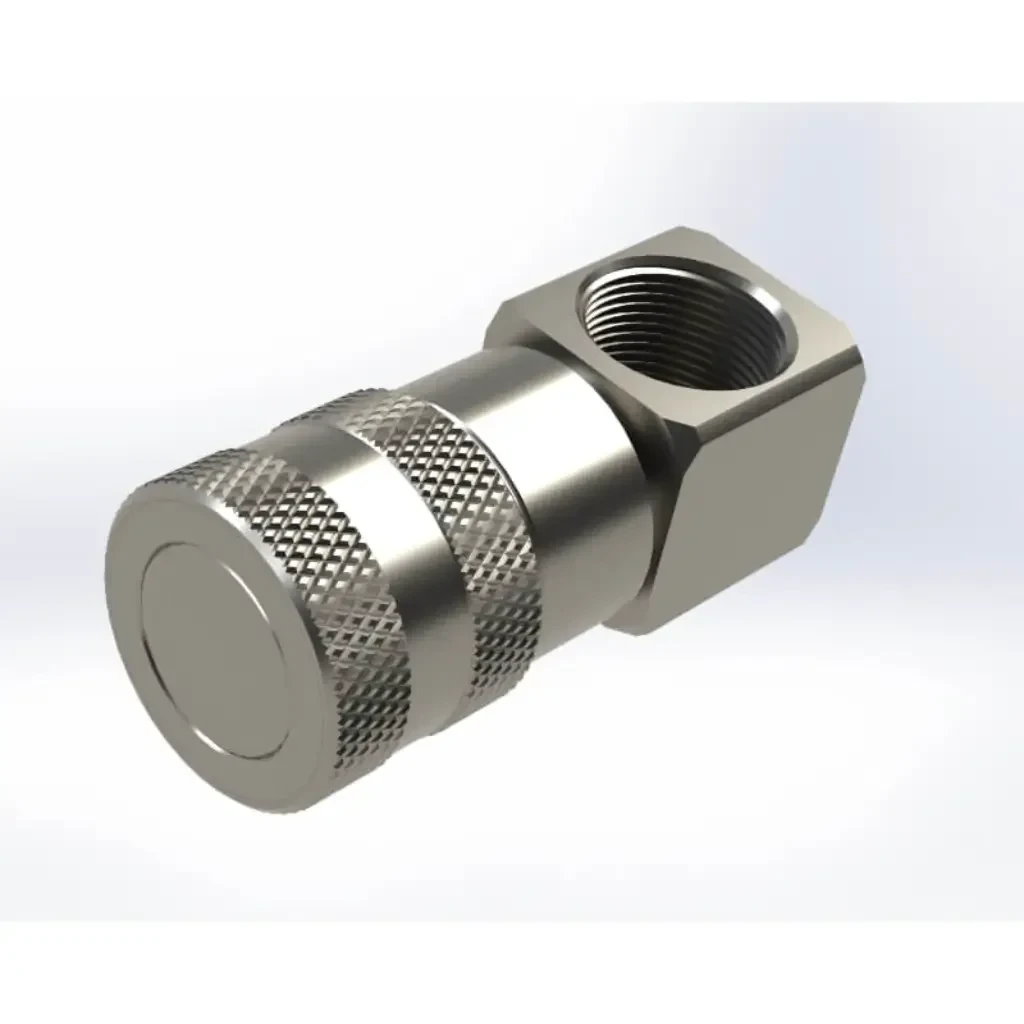

The Holmbury H12-F-08S-90 is an H90 Series flat face coupler featuring a 90-degree elbow design for hydraulic applications. This carbon steel coupling with zinc nickel plating is engineered to reduce leakage paths, minimize installation space requirements, and simplify circuit design without additional fittings.
- Series: H90 Series
- Construction: Carbon steel with zinc nickel plating
- Maximum Working Pressure: 350 bar
- Rated Flow: 45 LPM
- Seals: NBR and PTFE
- Temperature Range: -40 to 106°C
- ISO 16028 compliant
- Flat face design prevents fluid loss during disconnection and enables clean, dry connects
- 90-degree elbow incorporated for space-constrained installations
- Reduced back-end size for tight mounting spaces
- Compatible with HQ and HCP Series flat face couplings
Ideal for construction attachments, mobile equipment, agricultural applications, skid steer loaders, and leak-free industrial environments. Weight: 1.33 kg. Available at Next Day Fittings for fast industrial delivery.
