Product Description

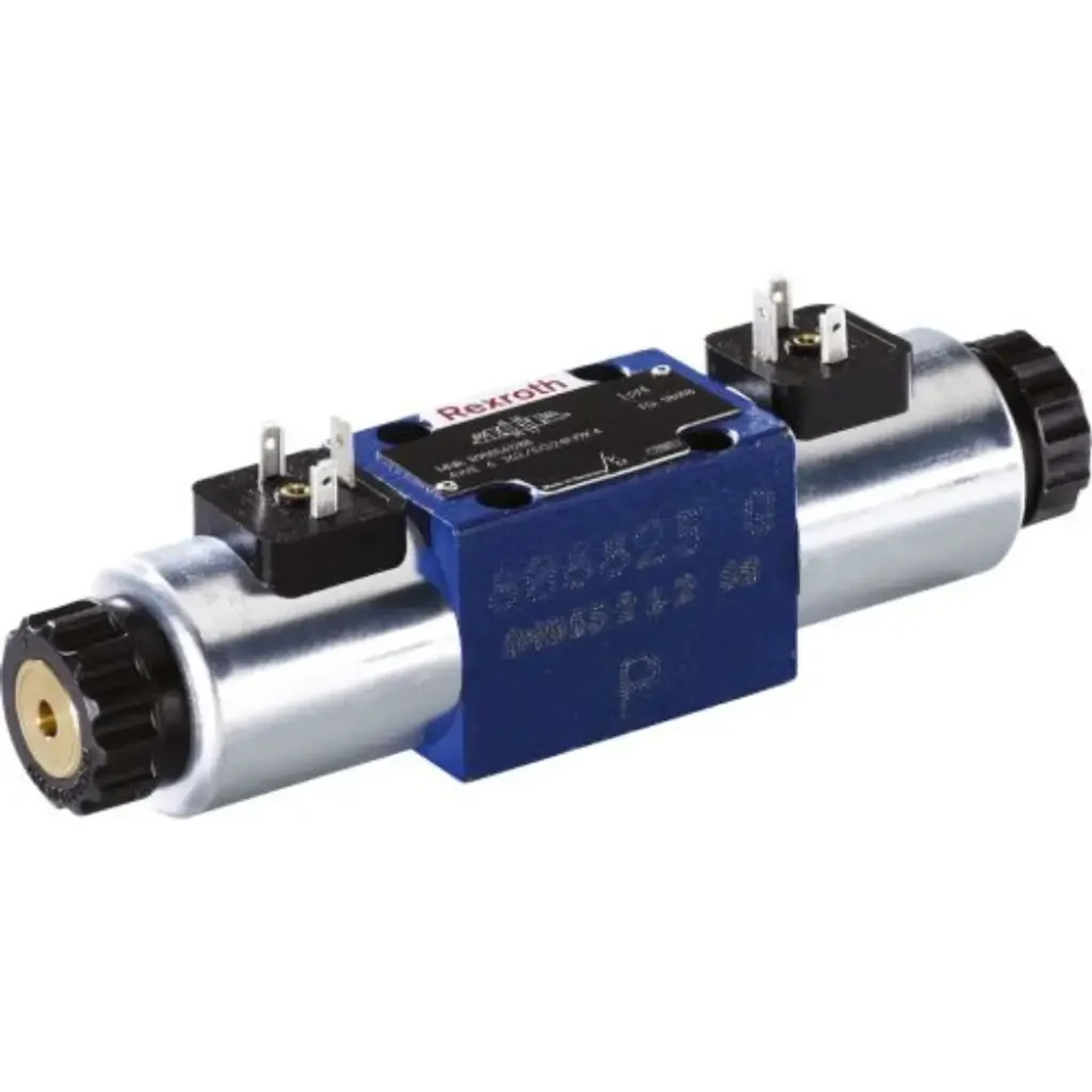

Bosch Rexroth R978017739 Hydraulic Directional Control Valve 4We6D6X/Ew110N9Dal/62Manufacturer:Bosch RexrothManufacturer Part Number:R978017739Product | Bosch Rexroth Hydraulic direct-acting single solenoid valve |
Model Code | 4WE6D6X/EW110N9DAL/62 |
Series / Family | WE series - size 6...E / component series 6X (60...69) |
Valve Function | 4/2-way (4 ports / 2 positions), Single solenoid, Monostable |
Max. Flow | 60L/min 16gallons/min |
Max Operating Pressure | 350bar 5076psi |
Hydraulic Fluid Temperature Range | −20°C…+80°C −4°F…+176°F |
Ambient Temperature Range | −20°C…+50°C −4°F…+122°F |
Reset Method | Mechanical Spring |
Manual Override | Flush / Concealed |
Solenoid | High-Power Wet-Pin with Detachable Coil |
Seal Material | NBR |
Connection Type | wiring chamber with terminals and 1/2" NPT conduit entry (with indicator light) |
Mounting Mode | Mounting on subplate (Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03; with locating hole and locking pin) 42mm clamping length with 4 x M5 screws or 4 x 10-24 UNC screws |
Power Consumption | 30W |
Current Consumption | 1A (nominal hold current) |
Control Voltage (AC) | 110Vac (50Hz/60Hz) |
Diagram | circuit diagram D |
Protection Class | IP65 |
Compliant with standard(s) | CE ISO 4401-03-02-0-05 NFPA T3.5.1 R2-2002 D03 |
