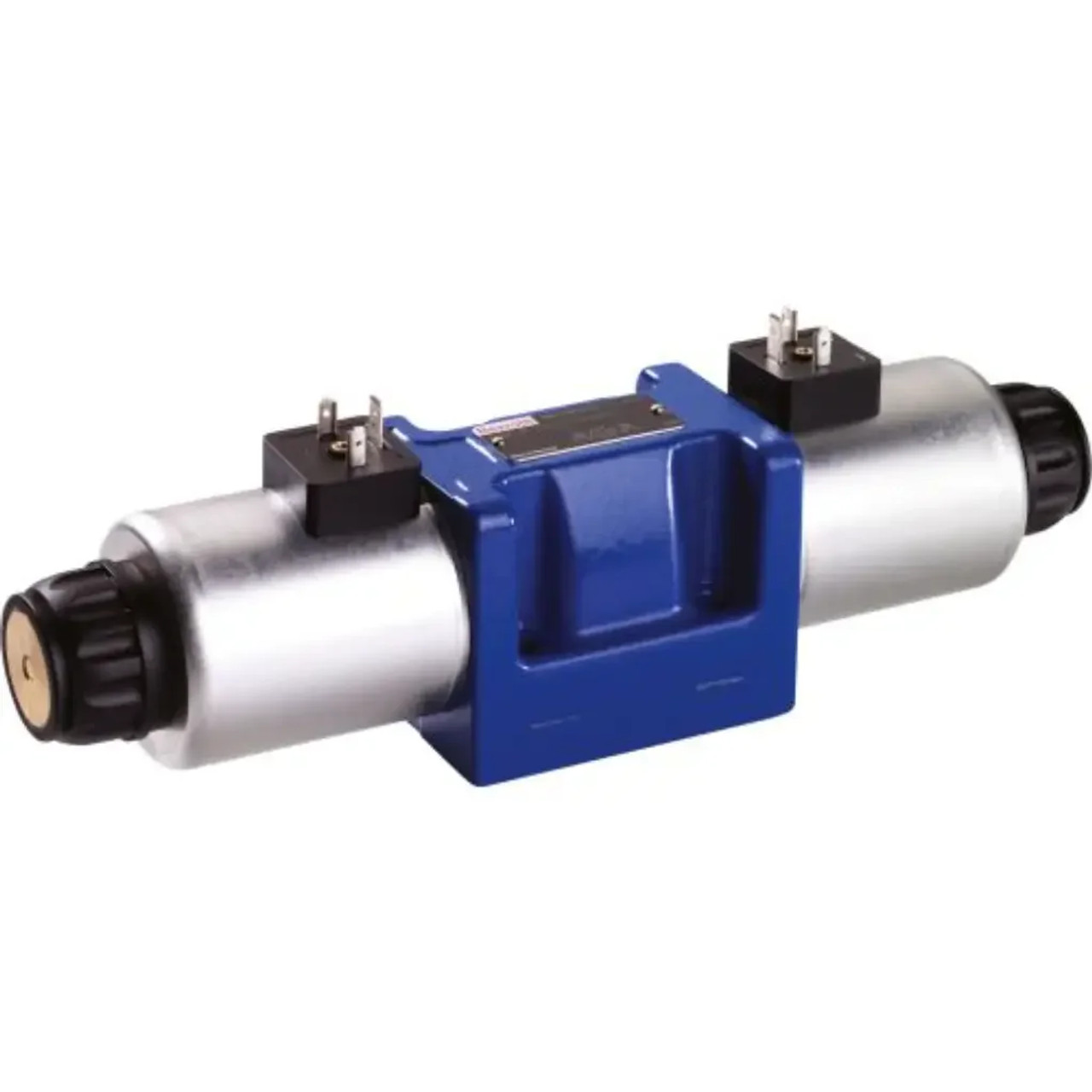

Bosch Rexroth R901492367 Hydraulic Direct-Acting Double Solenoid Valve 4WE10H5X/DEW110RN9DL/V
Next Day Fittings is an authorized Bosch Rexroth distributor. If you have any questions about this product or it's availability, please call us at: 844-323-8752Bosch Rexroth industrial hydraulics solutions are crafted to conquer the most challenging conditions. Bosch Rexroth is synonymous with exceptional performance, steadfast reliability, and precise accuracy in the industrial hydraulics sector. Next Day Fittings takes pride in delivering Bosch Rexroth's top-tier hydraulics technology tailored for the rigorous demands of heavy-duty industries.4WE10H5X/DEW110RN9DL/V, 4-way 3-positions (4/3) directional control, mech. reinforced compression spring center double solenoid valve, 110Vac, FKM seals, wiring chamber with term. + cable gld. + indic. light4-way (4/3) directional control hydraulic direct-acting double solenoid valve (32gpm) with concealed manual override - circuit diagram H - Bosch Rexroth (WE series size 10 - E / component series 5X (50...59)) - 4WE 10 H5X/DEW110RN9DL/V - 110Vac solenoid (40W) - 350bar / 5076psi - wiring chamber with term. + cable gld. + indic. light - FKM seals - Mounting on subplate (Porting pattern according to ISO 4401-05-04-0-05) - IP65 - 4-ports 3-positions - high-power wet-pin solenoid (with detachable coil) - mech. reinforced compression spring center - equivalent to 4WE10H5X/DEW110RN9DL/V / 4WE10H5XDEW110RN9DLV| Product | Bosch Rexroth Hydraulic direct-acting double solenoid valve |
| Model Code | 4WE10H5X/DEW110RN9DL/V |
| Series / Family | WE series - size 10 - E / component series 5X (50...59) |
| Valve Function | 4/3-way (4 ports / 3 positions), Double solenoid, Monostable |
| Max. Flow | 120L/min 32gallons/min |
| Max Operating Pressure | 350bar 5076psi |
| Hydraulic Fluid Temperature Range | −15°C…+80°C +5°F…+176°F |
| Ambient Temperature Range | −15°C…+70°C +5°F…+158°F |
| Reset Method | Reinforced Compression Spring |
| Manual Override | Flush / Concealed |
| Solenoid | High-Power Wet-Pin with Detachable Coil |
| Seal Material | FKM |
| Connection Type | wiring chamber with terminals + cable gld. + indicator light |
| Mounting Mode | Porting pattern according to ISO 4401-05-04-0-05 |
| Power Consumption | 40W |
| Current Consumption | 1A (nominal hold current) |
| Control Voltage (AC) | 110Vac (50Hz/60Hz) |
| Diagram | circuit diagram H |
| Protection Class | IP65 |
| Compliant with standard(s) | CE ISO 4401-05-04-0-05 |
