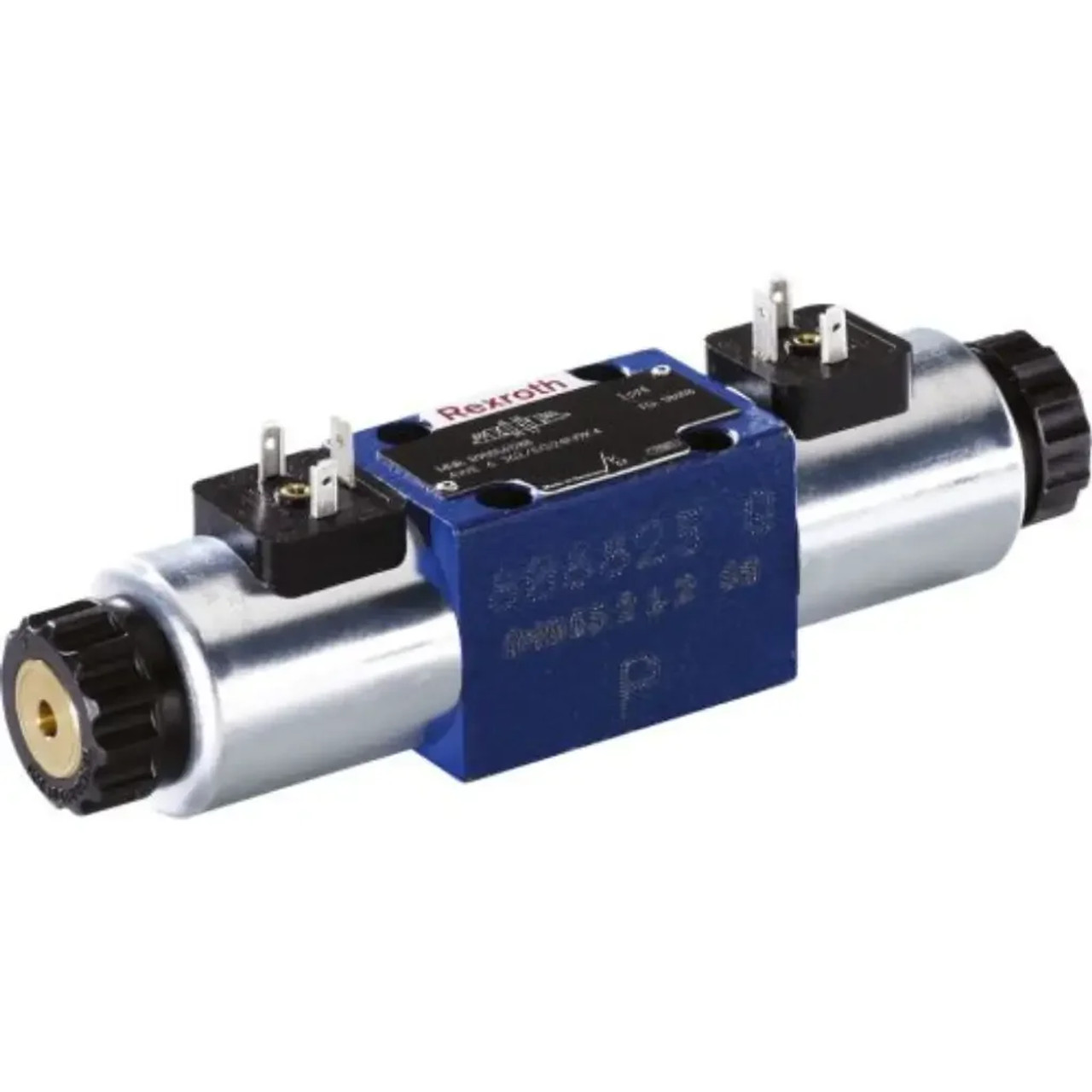

Bosch Rexroth R901421092 Hydraulic Direct-Acting Double Solenoid Valve 4WE6E6X/EW110RN9DK6L
Next Day Fittings is an authorized Bosch Rexroth distributor. If you have any questions about this product or it's availability, please call us at: 844-323-8752Bosch Rexroth industrial hydraulics solutions are crafted to conquer the most challenging conditions. Bosch Rexroth is synonymous with exceptional performance, steadfast reliability, and precise accuracy in the industrial hydraulics sector. Next Day Fittings takes pride in delivering Bosch Rexroth's top-tier hydraulics technology tailored for the rigorous demands of heavy-duty industries.4WE6E6X/EW110RN9DK6L, 4-way 3-positions (4/3) directional control, mech. spring center double solenoid valve, 110Vac, NBR seals, 7-pin DIN connector with indic. light4-way (4/3) directional control hydraulic direct-acting double solenoid valve (16gpm) with concealed manual override - circuit diagram E - Bosch Rexroth (WE series size 6...E / component series 6X (60...69)) - 4WE 6 E6X/EW110RN9DK6L - 110Vac solenoid (30W) - 350bar / 5076psi - 7-pin DIN connector with indic. light - NBR seals - Mounting on subplate (Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03) - IP65 - 4-ports 3-positions - high-power wet-pin solenoid (with detachable coil) - mech. spring center - equivalent to 4WE6E6X/EW110RN9DK6L / 4WE6E6XEW110RN9DK6L| Product | Bosch Rexroth Hydraulic direct-acting double solenoid valve |
| Model Code | 4WE6E6X/EW110RN9DK6L |
| Series / Family | WE series - size 6...E / component series 6X (60...69) |
| Valve Function | 4/3-way (4 ports / 3 positions), Double solenoid, Monostable |
| Max. Flow | 60L/min 16gallons/min |
| Max Operating Pressure | 350bar 5076psi |
| Hydraulic Fluid Temperature Range | −20°C…+80°C −4°F…+176°F |
| Ambient Temperature Range | −20°C…+50°C −4°F…+122°F |
| Reset Method | Mechanical Spring |
| Manual Override | Flush / Concealed |
| Solenoid | High-Power Wet-Pin with Detachable Coil |
| Seal Material | NBR |
| Connection Type | 7-pin DIN connector (43650) with indicator light |
| Mounting Mode | Mounting on subplate (Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03) 42mm clamping length with 4 x M5 screws or 4 x 10-24 UNC screws |
| Power Consumption | 30W |
| Current Consumption | 1A (nominal hold current) |
| Control Voltage (AC) | 110Vac (50Hz/60Hz) |
| Diagram | circuit diagram E |
| Protection Class | IP65 |
| Compliant with standard(s) | CE ISO 4401-03-02-0-05 NFPA T3.5.1 R2-2002 D03 |
