Product Description

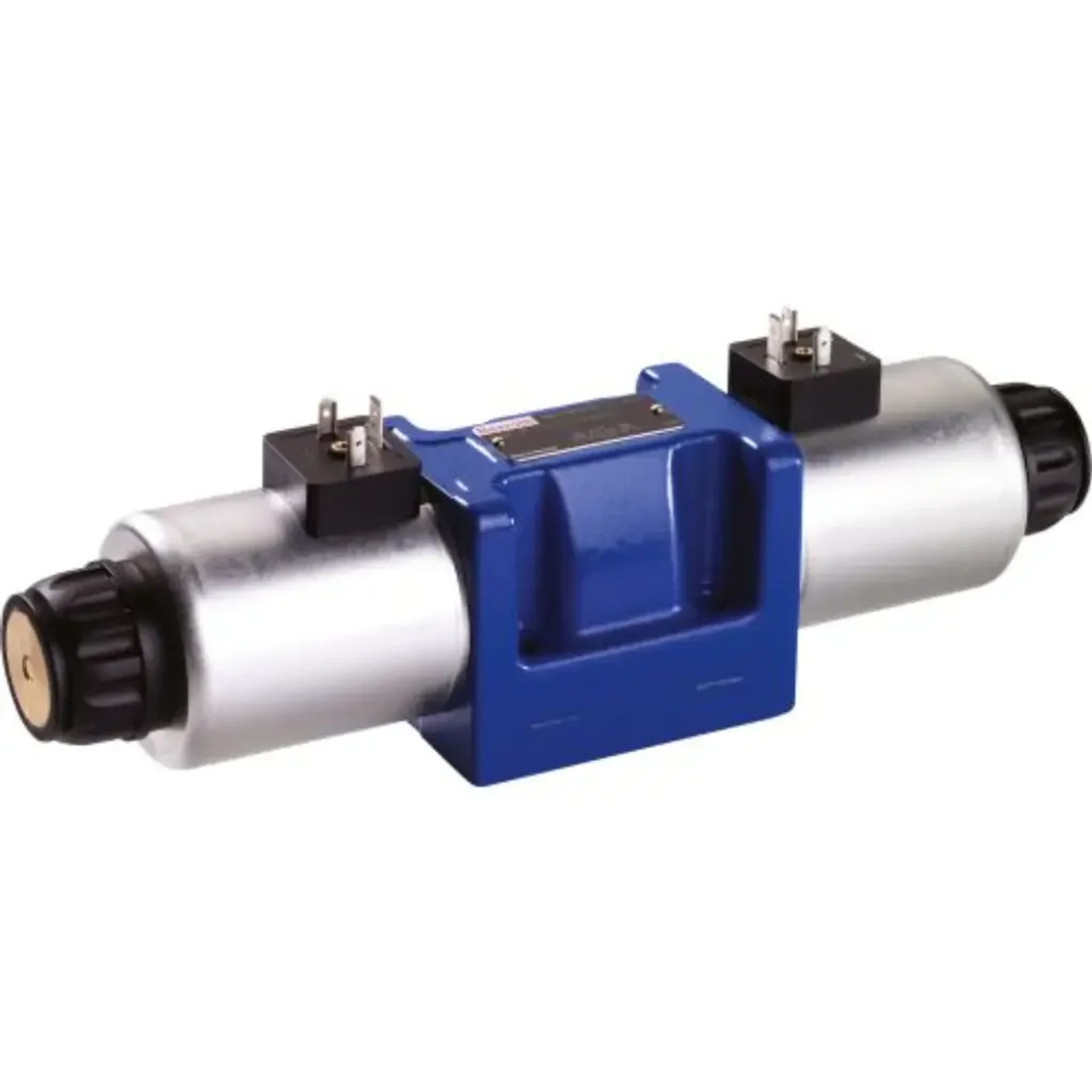

Bosch Rexroth R901326859 Hydraulic Direct-Acting Single Solenoid Valve 4WE10D5X/DEG24N9K4/MH
Next Day Fittings is an authorized Bosch Rexroth distributor. If you have any questions about this product or it's availability, please call us at: 844-323-8752Bosch Rexroth industrial hydraulics solutions are crafted to conquer the most challenging conditions. Bosch Rexroth is synonymous with exceptional performance, steadfast reliability, and precise accuracy in the industrial hydraulics sector. Next Day Fittings takes pride in delivering Bosch Rexroth's top-tier hydraulics technology tailored for the rigorous demands of heavy-duty industries.4WE10D5X/DEG24N9K4/MH, 4-way 2-positions (4/2) directional control, mech. reinforced compression spring return single solenoid valve, 24Vdc, seals for high-temperature (HFC hydraulic fluids), 3-pin DIN connector4-way (4/2) directional control hydraulic direct-acting single solenoid valve (42gpm) with concealed manual override - circuit diagram D - Bosch Rexroth (WE series size 10 - E / component series 5X (50...59)) - 4WE 10 D5X/DEG24N9K4/MH - 24Vdc solenoid (40W) - 350bar / 5076psi - 3-pin DIN connector - seals for high-temperature (HFC hydraulic fluids) - Mounting on subplate (Porting pattern according to ISO 4401-05-04-0-05) - IP65 - 4-ports 2-positions - high-power wet-pin solenoid (with detachable coil) - mech. reinforced compression spring return - equivalent to 4WE10D5X/DEG24N9K4/MH / 4WE10D5XDEG24N9K4MH| Product | Bosch Rexroth Hydraulic direct-acting single solenoid valve |
| Model Code | 4WE10D5X/DEG24N9K4/MH |
| Series / Family | WE series - size 10 - E / component series 5X (50...59) |
| Valve Function | 4/2-way (4 ports / 2 positions), Single solenoid, Monostable |
| Max. Flow | 160L/min 42gallons/min |
| Max Operating Pressure | 350bar 5076psi |
| Hydraulic Fluid Temperature Range | −20°C…+50°C −4°F…+122°F |
| Ambient Temperature Range | −20°C…+50°C −4°F…+122°F |
| Reset Method | Reinforced Compression Spring |
| Manual Override | Flush / Concealed |
| Solenoid | High-Power Wet-Pin with Detachable Coil |
| Seal Material | seals for high-temperature (HFC hydraulic fluids) |
| Connection Type | 3-pin DIN connector (43650) |
| Mounting Mode | Porting pattern according to ISO 4401-05-04-0-05 |
| Power Consumption | 40W |
| Current Consumption | 2A (nominal hold current) |
| Control Voltage (DC) | 24Vdc |
| Diagram | circuit diagram D |
| Protection Class | IP65 |
| Compliant with standard(s) | CE ISO 4401-05-04-0-05 |
