Product Description

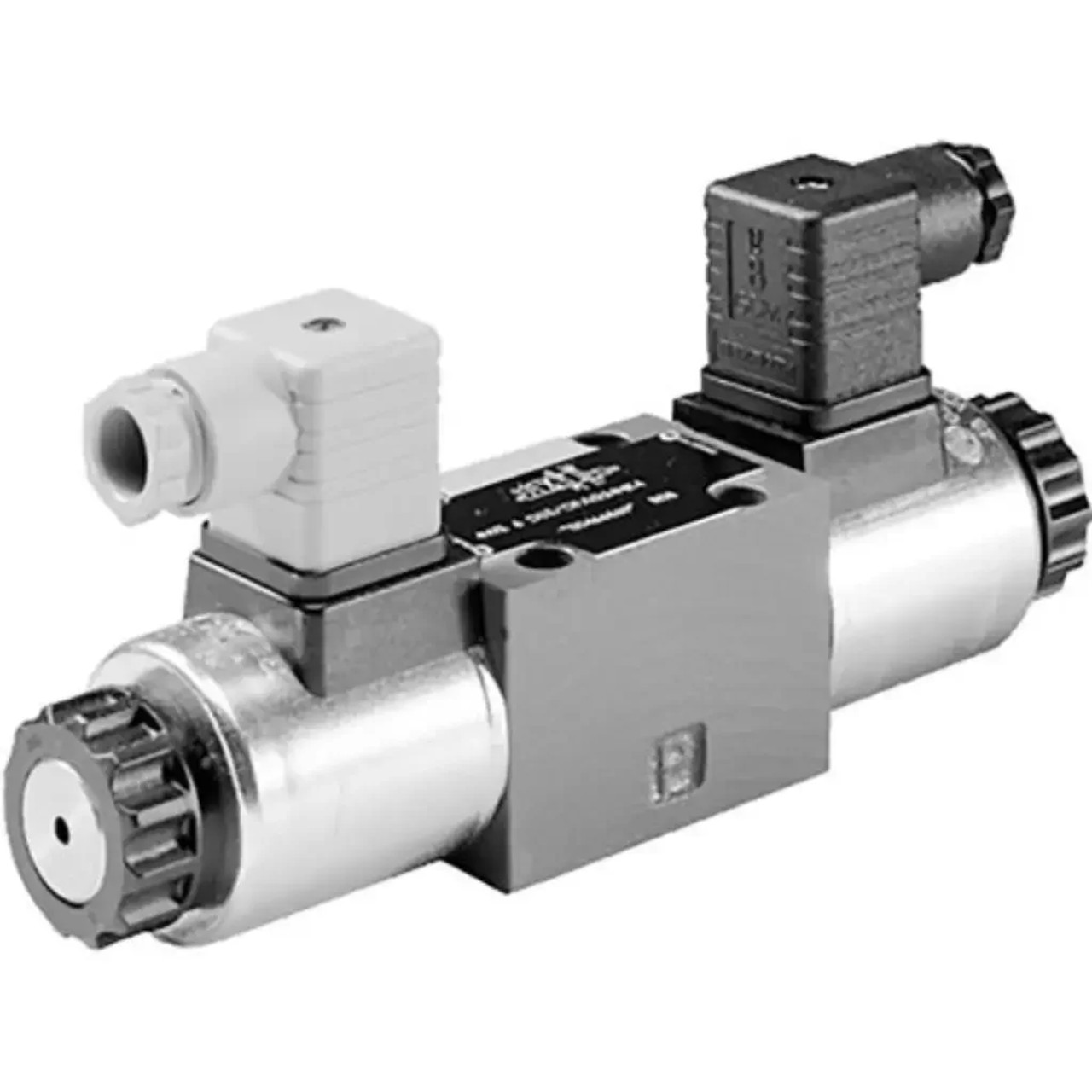

Bosch Rexroth R901311754 Hydraulic Direct-Acting Single Solenoid Valve 4WE6D6X/EG24N9K72L/VSO407=AN
Next Day Fittings is an authorized Bosch Rexroth distributor. If you have any questions about this product or it's availability, please call us at: 844-323-8752Bosch Rexroth industrial hydraulics solutions are crafted to conquer the most challenging conditions. Bosch Rexroth is synonymous with exceptional performance, steadfast reliability, and precise accuracy in the industrial hydraulics sector. Next Day Fittings takes pride in delivering Bosch Rexroth's top-tier hydraulics technology tailored for the rigorous demands of heavy-duty industries.4WE6D6X/EG24N9K72L/VSO407=AN, 4-way 2-positions (4/2) directional control, mech. spring return single solenoid valve, 24Vdc, FKM seals, 4-pin M12 connector with suppressor diode and D.E.S.I.N.A pin assignment4-way (4/2) directional control hydraulic direct-acting single solenoid valve (21gpm) with concealed manual override - circuit diagram D - reduced electric power consumption - Bosch Rexroth (WE series size 6...E / component series 6X (60...69)) - 4WE 6 D6X/EG24N9K72L/V SO407=AN - 24Vdc solenoid (8W) - 315bar / 4550psi - 4-pin M12 connector with suppressor diode and D.E.S.I.N.A pin assignment - FKM seals - Mounting on subplate (Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03) - IP65 - 4-ports 2-positions - high-power wet-pin solenoid (with detachable coil) - mech. spring return - equivalent to 4WE6D6X/EG24N9K72L/VSO407=AN / 4WE6D6XEG24N9K72LVSO407AN| Product | Bosch Rexroth Hydraulic direct-acting single solenoid valve |
| Model Code | 4WE6D6X/EG24N9K72L/VSO407=AN |
| Series / Family | WE series - size 6...E / component series 6X (60...69) |
| Valve Function | 4/2-way (4 ports / 2 positions), Single solenoid, Monostable |
| Max. Flow | 80L/min 21gallons/min |
| Max Operating Pressure | 315bar 4550psi |
| Hydraulic Fluid Temperature Range | −15°C…+80°C +5°F…+176°F |
| Ambient Temperature Range | −15°C…+50°C +5°F…+122°F |
| Reset Method | Mechanical Spring |
| Manual Override | Flush / Concealed |
| Solenoid | High-Power Wet-Pin with Detachable Coil |
| Seal Material | FKM |
| Connection Type | 4-pin M12 connector with suppressor diode and D.E.S.I.N.A pin assignment |
| Mounting Mode | Mounting on subplate (Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03) 42mm clamping length with 4 x M5 screws or 4 x 10-24 UNC screws |
| Power Consumption | 8W |
| Current Consumption | 2A (nominal hold current) |
| Control Voltage (DC) | 24Vdc |
| Diagram | circuit diagram D |
| Protection Class | IP65 |
| Additional Info | reduced electric power consumption |
| Compliant with standard(s) | CE ISO 4401-03-02-0-05 NFPA T3.5.1 R2-2002 D03 ANSI B93.9 |
