Product Description

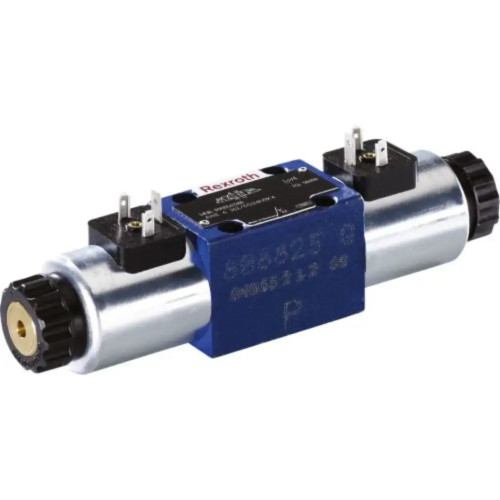

Bosch Rexroth R901224429 Hydraulic Directional Control Valve 4We6G6X/Eg24N9K4/62Manufacturer:Bosch RexrothManufacturer Part Number:R901224429Product | Bosch Rexroth Hydraulic direct-acting double solenoid valve |
Model Code | 4WE6G6X/EG24N9K4/62 |
Series / Family | WE series - size 6...E / component series 6X (60...69) |
Valve Function | 4/3-way (4 ports / 3 positions), Double solenoid, Monostable |
Max. Flow | 80L/min 21gallons/min |
Max Operating Pressure | 350bar 5076psi |
Hydraulic Fluid Temperature Range | −20°C…+80°C −4°F…+176°F |
Ambient Temperature Range | −20°C…+50°C −4°F…+122°F |
Reset Method | Mechanical Spring |
Manual Override | Flush / Concealed |
Solenoid | High-Power Wet-Pin with Detachable Coil |
Seal Material | NBR |
Connection Type | 3-pin DIN connector (43650) |
Mounting Mode | Mounting on subplate (Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03; with locating hole and locking pin) 42mm clamping length with 4 x M5 screws or 4 x 10-24 UNC screws |
Power Consumption | 30W |
Current Consumption | 2A (nominal hold current) |
Control Voltage (DC) | 24Vdc |
Diagram | circuit diagram G |
Protection Class | IP65 |
Compliant with standard(s) | CE ISO 4401-03-02-0-05 NFPA T3.5.1 R2-2002 D03 |
