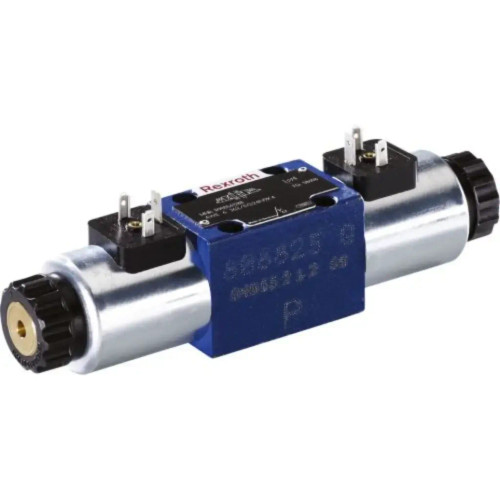

Bosch Rexroth R901067547 Hydraulic Directional Control Valves 4WE6E6X/EW110N9DAL/V
Next Day Fittings is an authorized Bosch Rexroth distributor. If you have any questions about this product or it's availability, please call us at: 844-323-8752Bosch Rexroth industrial hydraulics solutions are crafted to conquer the most challenging conditions. Bosch Rexroth is synonymous with exceptional performance, steadfast reliability, and precise accuracy in the industrial hydraulics sector. Next Day Fittings takes pride in delivering Bosch Rexroth's top-tier hydraulics technology tailored for the rigorous demands of heavy-duty industries.4-way (4/2) directional control hydraulic direct-acting single solenoid valve (40gpm) - circuit diagram D - Bosch Rexroth (WE series size 10 (5-chamber version) / component series 5X (50...59)) - 5-4WE 10 D5X/EG24K4QMAG24/M - 24Vdc solenoid (40W) - 350bar / 5076psi - 3-pin DIN connector - NBR seals - Mounting on subplate (Porting pattern according to ISO 4401-05-04-0-05) - IP65 - 4-ports 2-positions - high-power wet-pin solenoid (with detachable coil) - mech. spring return - with built-in inductive position sw. type QM (at spool position "a") - equivalent to 5-4WE10D5X/EG24K4QMAG24/M / 54WE10D5XEG24K4QMAG24MR901336795 Bosch Rexroth Hydraulic Direct-Acting Single Solenoid Valve - 5-4WE10D5X/EG24K4QMAG24/M
Directional spool valves, direct operated, with solenoid actuation ? Type 5-.WE
The 5-chamber directional valve type 5-.WE is a solenoid actuated directional spool valve with switching time increase. It controls the start, stop, and direction of a flow. These directional valves basically consist of the housing; one or two electronic solenoids, the control spool; and are available with or without return springs or detents. A full array of spools are possible with variations in voltage and electrical connection, all within the program. Flow and pressure rates available to cover a wide range of applications.
Features:
- 5-chamber version
- Size 10
- Component Series 5X
- Max Operating Pressure 420 bar
- Max flow 150 l/min
- 4/3, 4/2 or 3/2 way versions
- Porting Pattern according to ISO 4401-05-04-0-05 and NFPA T3.5.1 R2-2002 D05
- High-power solenoid, optionally rotatable by 90°
- Electrical connection as individual connection
- Cartridge optionally equipped with PWM connector (fast switching amplifier, enerty reduction)
- Manual Override - optional
- Spool position monitoring - optional
- CE conformity according to the Low-Voltage Directive 2014/35/EU for electrical voltages > 50 VAC or > 75 VDC
- Solenoid coil with UR approval UL 429
- Approval according to CSA C22.2 no. 139-10 - optional
Product | Bosch Rexroth Hydraulic direct-acting single solenoid valve |
Model Code | 5-4WE10D5X/EG24K4QMAG24/M |
Series / Family | WE series - size 10 (5-chamber version) / component series 5X (50...59) |
Valve Function | 4/2-way (4 ports / 2 positions), Single solenoid, Monostable |
Max. Flow | 150L/min |
Max Operating Pressure | 350bar |
Hydraulic Fluid Temperature Range | −20°C…+80°C |
Ambient Temperature Range | −20°C…+70°C |
Reset Method | Mechanical Spring |
Manual Override | None |
Solenoid | High-Power Wet-Pin with Detachable Coil |
Seal Material | NBR |
Connection Type | 3-pin DIN connector (43650) |
Mounting Mode | Porting pattern according to ISO 4401-05-04-0-05 |
Power Consumption | 40W |
Current Consumption | 2A (nominal hold current) |
Control Voltage (DC) | 24Vdc |
Diagram | circuit diagram D |
Protection Class | IP65 |
Additional Info | with built-in inductive position sw. type QM (at spool position "a") |
Compliant with standard(s) | CE |
