Product Description

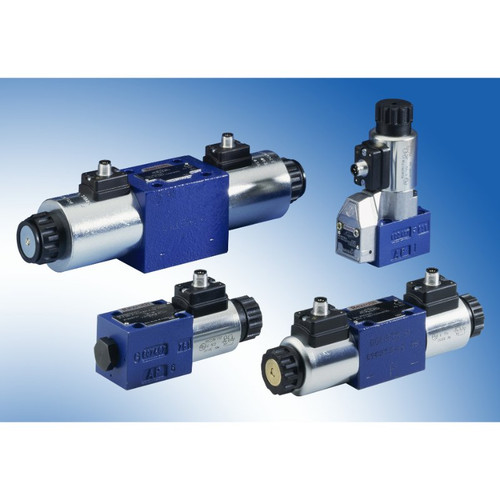

Bosch Rexroth R900944163 Hydraulic Direct-Acting Single Solenoid Valve 3WE10A73-3X/CG24N9K4/A12V
Next Day Fittings is an authorized Bosch Rexroth distributor. If you have any questions about this product or it's availability, please call us at: 844-323-8752Bosch Rexroth industrial hydraulics solutions are crafted to conquer the most challenging conditions. Bosch Rexroth is synonymous with exceptional performance, steadfast reliability, and precise accuracy in the industrial hydraulics sector. Next Day Fittings takes pride in delivering Bosch Rexroth's top-tier hydraulics technology tailored for the rigorous demands of heavy-duty industries.3WE10A73-3X/CG24N9K4/A12V, 3-way 2-positions (3/2) directional control, mech. spring return single solenoid valve, 24Vdc, FKM seals, 3-pin DIN connector3-way (3/2) directional control hydraulic direct-acting single solenoid valve (32gpm) with concealed manual override - circuit diagram A73 - smooth switching - Bosch Rexroth (WE series size 10 / component series 3X) - 3WE 10 A73-3X/CG24N9K4/A12V - 24Vdc - 315bar / 4569psi - 3-pin DIN connector - increased switching time with 1.2mm / 0.047" orifice diam. - FKM seals - Mounting on subplate (Porting pattern according to ISO 4401-05-04-0-05) - IP65 - 3-ports 2-positions - high-power wet-pin solenoid (with detachable coil) - mech. spring return - equivalent to 3WE10A73-3X/CG24N9K4/A12V / 3WE10A733XCG24N9K4A12V| Product | Bosch Rexroth Hydraulic direct-acting single solenoid valve |
| Model Code | 3WE10A73-3X/CG24N9K4/A12V |
| Series / Family | WE series - size 10 / component series 3X |
| Valve Function | 3/2-way (3 ports / 2 positions), Single solenoid, Monostable |
| Max. Flow | 120L/min 32gallons/min |
| Max Operating Pressure | 315bar 4569psi |
| Hydraulic Fluid Temperature Range | −20°C…+80°C −4°F…+176°F |
| Ambient Temperature Range | −20°C…+50°C −4°F…+122°F |
| Reset Method | Mechanical Spring |
| Manual Override | Flush / Concealed |
| Solenoid | High-Power Wet-Pin with Detachable Coil |
| Seal Material | FKM |
| Connection Type | 3-pin DIN connector (43650) |
| Mounting Mode | Porting pattern according to ISO 4401-05-04-0-05 |
| Current Consumption | 2A (nominal hold current) |
| Control Voltage (DC) | 24Vdc |
| Diagram | circuit diagram A73 |
| Protection Class | IP65 |
| Additional Info | increased switching time with 1.2mm / 0.047" orifice diam. |
| Compliant with standard(s) | ISO 4401-05-04-0-05 NFPA T3.5.1 R2-2002 D05 |
