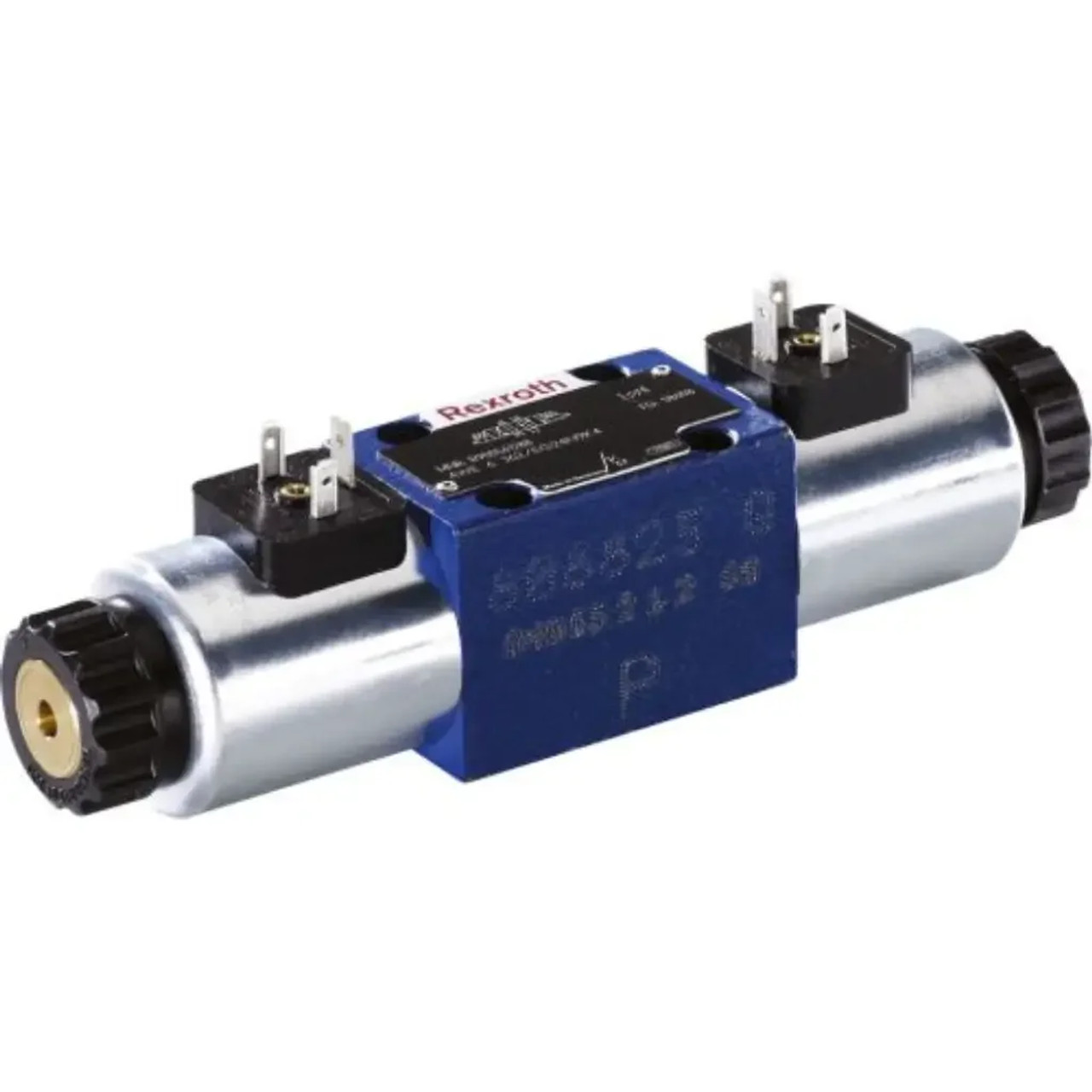

Bosch Rexroth R900914070 Hydraulic Directional Control Valve 4We6Q6X/Eg24N9K4/V
Next Day Fittings is an authorized Bosch Rexroth distributorAs an official Bosch Rexroth distributor, Next Day Fittings delivers our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Bosch Rexroth Hydraulic Directional Control Valves product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is committed to being your Bosch Rexroth Hydraulic Directional Control Valves partner every step of the way.Bosch Rexroth R900914070 Hydraulic Directional Control Valve 4We6Q6X/Eg24N9K4/VManufacturer:Bosch RexrothManufacturer Part Number:R900914070| Product | Bosch Rexroth Hydraulic direct-acting double solenoid valve |
| Model Code | 4WE6Q6X/EG24N9K4/V |
| Series / Family | WE series - size 6...E / component series 6X (60...69) |
| Valve Function | 4/3-way (4 ports / 3 positions), Double solenoid, Monostable |
| Max. Flow | 80L/min 21gallons/min |
| Max Operating Pressure | 350bar 5076psi |
| Hydraulic Fluid Temperature Range | −15°C…+80°C +5°F…+176°F |
| Ambient Temperature Range | −15°C…+50°C +5°F…+122°F |
| Reset Method | Mechanical Spring |
| Manual Override | Flush / Concealed |
| Solenoid | High-Power Wet-Pin with Detachable Coil |
| Seal Material | FKM |
| Connection Type | 3-pin DIN connector (43650) |
| Mounting Mode | Mounting on subplate (Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03) 42mm clamping length with 4 x M5 screws or 4 x 10-24 UNC screws |
| Power Consumption | 30W |
| Current Consumption | 2A (nominal hold current) |
| Control Voltage (DC) | 24Vdc |
| Diagram | circuit diagram Q |
| Protection Class | IP65 |
| Compliant with standard(s) | CE ISO 4401-03-02-0-05 NFPA T3.5.1 R2-2002 D03 |
