Product Description

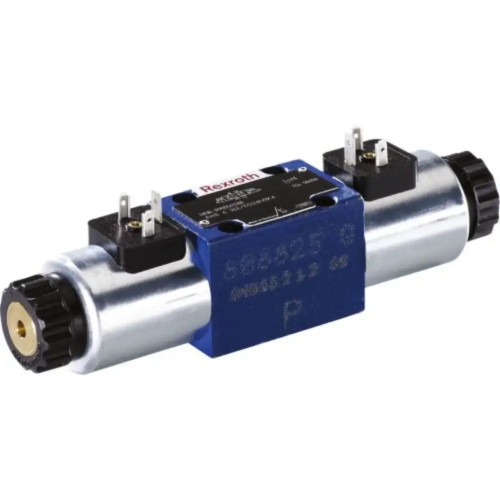

Bosch Rexroth R900765506 Hydraulic Direct-Acting Single Solenoid Valve 4WE6Y6X/EG12N2K4K
Next Day Fittings is an authorized Bosch Rexroth distributor. If you have any questions about this product or it's availability, please call us at: 844-323-8752Bosch Rexroth industrial hydraulics solutions are crafted to conquer the most challenging conditions. Bosch Rexroth is synonymous with exceptional performance, steadfast reliability, and precise accuracy in the industrial hydraulics sector. Next Day Fittings takes pride in delivering Bosch Rexroth's top-tier hydraulics technology tailored for the rigorous demands of heavy-duty industries.4WE6Y6X/EG12N2K4K, 4-way 2-positions (4/2) directional control, mech. spring return single solenoid valve, 12Vdc, NBR seals, 3-pin DIN connector with potted-in plug base and sealing element4-way (4/2) directional control hydraulic direct-acting single solenoid valve (21gpm) with mushroom btn. (small) manual override - circuit diagram Y - Bosch Rexroth (WE series size 6...E / component series 6X (60...69)) - 4WE 6 Y6X/EG12N2K4K - 12Vdc solenoid (30W) - 350bar / 5076psi - 3-pin DIN connector with potted-in plug base and sealing element - NBR seals - Mounting on subplate (Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03) - IP65 - 4-ports 2-positions - high-power wet-pin solenoid (with detachable coil) - mech. spring return - equivalent to 4WE6Y6X/EG12N2K4K / 4WE6Y6XEG12N2K4K| Product | Bosch Rexroth Hydraulic direct-acting single solenoid valve |
| Model Code | 4WE6Y6X/EG12N2K4K |
| Series / Family | WE series - size 6...E / component series 6X (60...69) |
| Valve Function | 4/2-way (4 ports / 2 positions), Single solenoid, Monostable |
| Max. Flow | 80L/min 21gallons/min |
| Max Operating Pressure | 350bar 5076psi |
| Hydraulic Fluid Temperature Range | −20°C…+80°C −4°F…+176°F |
| Ambient Temperature Range | −20°C…+50°C −4°F…+122°F |
| Reset Method | Mechanical Spring |
| Manual Override | Mushroom Push Button - Small |
| Solenoid | High-Power Wet-Pin with Detachable Coil |
| Seal Material | NBR |
| Connection Type | 3-pin DIN connector (43650) with potted-in plug base and sealing element |
| Mounting Mode | Mounting on subplate (Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03) 42mm clamping length with 4 x M5 screws or 4 x 10-24 UNC screws |
| Power Consumption | 30W |
| Current Consumption | 3A (nominal hold current) |
| Control Voltage (DC) | 12Vdc |
| Diagram | circuit diagram Y |
| Protection Class | IP65 |
| Compliant with standard(s) | CE ISO 4401-03-02-0-05 NFPA T3.5.1 R2-2002 D03 |
