Product Description

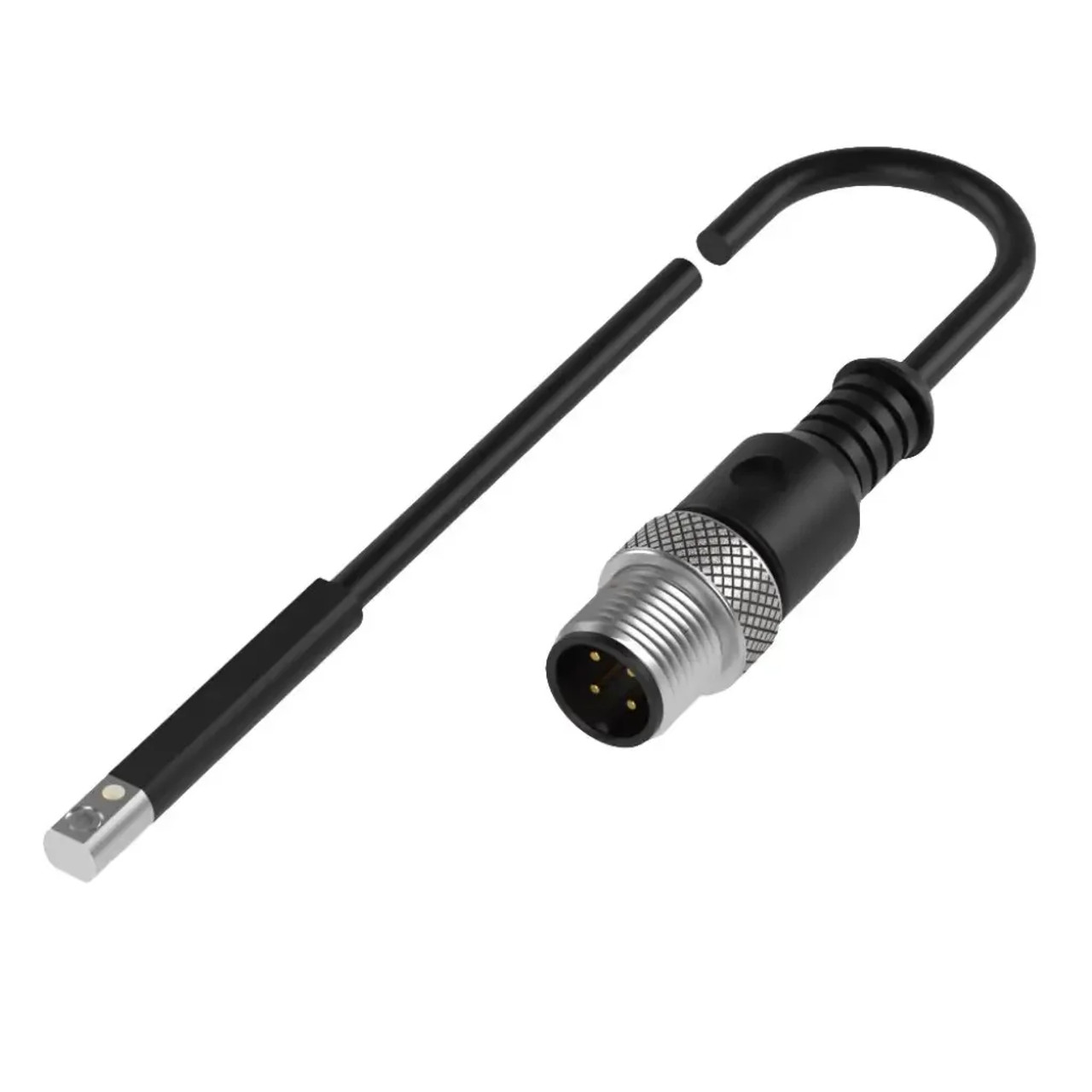

Balluff BMF00P3 Proximity Sensors
Slot type = C-slot, Dimension = 24 x 2.9 x 24 mm, Principle of operation = Magnetic field sensor, Connection = M12x1-Male, 4-pin, A-coded, Cable = PUR, 0.3 m, Application = Object detection, Mounting part = Screw M2, Housing material = PA 12, Switching output = PNP Normally open (NO), Switching frequency = 500 Hz, Operating voltage Ub = 10...30 VDC, Ambient temperature = -25...85 °C, IP rating = IP67, Approval/Conformity = CE, UKCA, WEEE, cULusNext Day Fittings is an authorized Balluff Distributor. If you have any questions about the Balluff BMF00P3 Proximity Sensors's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Balluff distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Balluff product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Balluff partner every step of the way. Principle of operation | Magnetic field sensor |
Operating principle | Magnetic field |
Application | Object detection |
Ambient temperature | -25...85 °C |
Cable | PUR, 0.3 m |
Cable diameter D | 2.4 mm |
Connection | Cable with connector, M12x1-Male, 4-pin, 0.3 m, PUR |
Connector design | M12x1 |
Dimension | 24 x 2.9 x 24 mm |
Function indicator | Active, LED yellow |
Housing material | PA 12 |
Interface | PNP Normally open (NO) |
IP rating | IP67 |
Material | PA |
Material jacket | PUR |
Material sensing surface | PA 12 |
Mounting part | Screw M2 |
MTTF (40 °C) | 1879 a |
Operating voltage max. DC 01 | 30 V |
Operating voltage Ub | 10...30 VDC |
Rated operating voltage Ue | 24 VDC |
Rated operating voltage Ue DC | 24 V |
Size | C-slot |
Style Housing | C-slot |
Switching frequency | 500 Hz |
Switching function | Normally open (NO) |
Switching output | PNP Normally open (NO) |
Utilization category | DC -13 |
Scope of delivery | Cable clip for C-slot |
Approval/Conformity | CE, UKCA, WEEE, cULus |
Trademark | Global |
Additional text | Damping magnet axially magnetized |
