Product Description

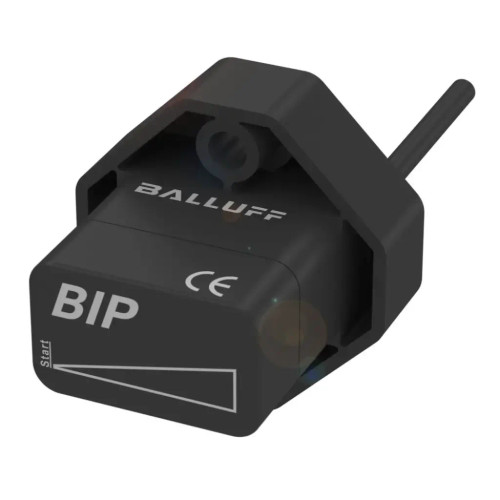

Balluff BIP001U Position Sensors
Dimension = 35 x 35 x 31 mm, Style Housing = block style, Connection = Cable, 2.00 m, PUR, Cable shield = yes, Housing material = PA, Measuring range = 0...17 mm, Analog output = Analog, voltage 0...10 V, Output characteristic = Adjustable, Repeat accuracy = ±50 µm, Non-linearity max. = ±250 µm, Operating voltage Ub = 15...30 VDC, Ambient temperature = -25...70 °C, IP rating = IP67, Approval/Conformity = CE, UKCA, cURus, WEEENext Day Fittings is an authorized Balluff Distributor. If you have any questions about the Balluff BIP001U Position Sensors's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Balluff distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Balluff product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Balluff partner every step of the way. Principle of operation | Inductive positioning system |
Operating principle | Inductive |
Application | Positioning |
Ambient temperature | -25...70 °C |
Analog output | Analog, voltage 0...10 V |
Cable | PUR, 2 m |
Cable diameter D | 3.50 mm |
Cable shield | yes |
Conductor cross-section | 0.14 mm? |
Connection | Cable, 2.00 m, PUR |
Diagnostic coverage | 0.0 % |
Dimension | 35 x 35 x 31 mm |
Function indicator | Adjustment indicator |
Housing material | PA |
Interface | Analog, voltage 0...10 V;Adjustable |
IP rating | IP67 |
Material | PA |
Material jacket | PUR |
Material sensing surface | PA |
Measuring length | 0...17 mm |
Measuring range | 0...17 mm |
MTTF (40 °C) | 350 a |
Non-linearity max. | ±250 µm |
Number of conductors | 3 |
Operating voltage max. DC 01 | 30.0 V |
Operating voltage Ub | 15...30 VDC |
Output characteristic | Adjustable |
Power indicator | no |
Rated operating voltage Ue | 24 VDC |
Rated operating voltage Ue DC | 24 V |
Repeat accuracy | ±50 µm |
Style Housing | block style |
Temperature coefficient typ. | 0.0 µm/K |
Approval/Conformity | CE, UKCA, cURus, WEEE |
Additional text | Please refer to manual. |
