Product Description

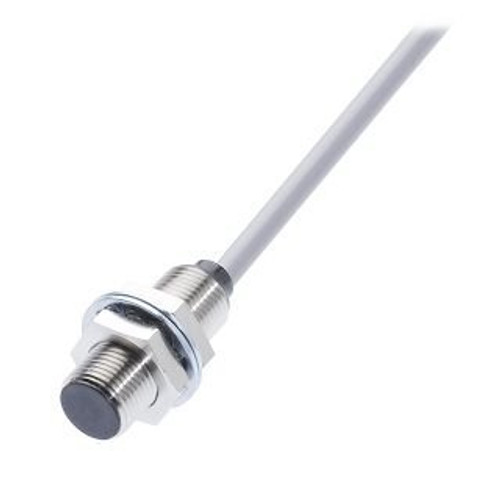

Balluff BES00P9 Inductive Sensors
Part # BES00P9 Model Code: BES 516-325-E4-C-03 Additional Info: Inductive Sensors, DC 3/4-wire Next Day Fittings is an authorized Balluff Distributor. If you have any questions about the Balluff BES00P9 Inductive Sensors's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Balluff distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Balluff product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Balluff partner every step of the way.Inductive sensor, Cable, Normally open (NO), PNP, Sn: 2.00 mm, Flush (shielded), M12x1
Principle of operation | Inductive sensor |
Operating principle | Inductive |
Ambient temperature | -25...70 °C |
Cable | PVC, 3 m |
Cable diameter D | 4.65 mm |
Conductor cross-section | 0.34 mm? |
Connection | Cable, 3.00 m, PVC |
Diagnostic coverage | 0 % |
Dimension | ? 12 x 33 mm |
Function indicator | yes |
Housing material | Brass, nickel-plated |
Installation | for flush mounting |
Interface | PNP Normally open (NO) |
IP rating | IP68 |
Material | Brass nickel-plated |
Material jacket | PVC |
Material sensing surface | PBT |
Mission Time | 20 a |
MTTF (40 °C) | 830 a |
Number of conductors | 3 |
Operating voltage max. DC 01 | 30.0 V |
Operating voltage Ub | 10...30 VDC |
Power indicator | no |
Range | 2 mm |
Rated operating voltage Ue | 24 VDC |
Rated operating voltage Ue DC | 24 V |
Size | M12x1 |
Style Housing | M12x1 |
Surface protection | nickel-plated |
Switching frequency | 1. Switch position: 5000 Hz |
Switching frequency | 3500 Hz |
Switching function | Normally open (NO) |
Switching output | PNP Normally open (NO) |
Utilization category | DC -13 |
Approval/Conformity | CE, UKCA, cULus, WEEE |
Additional text | The sensor is functional again after the overload has been eliminated. |
