Product Description

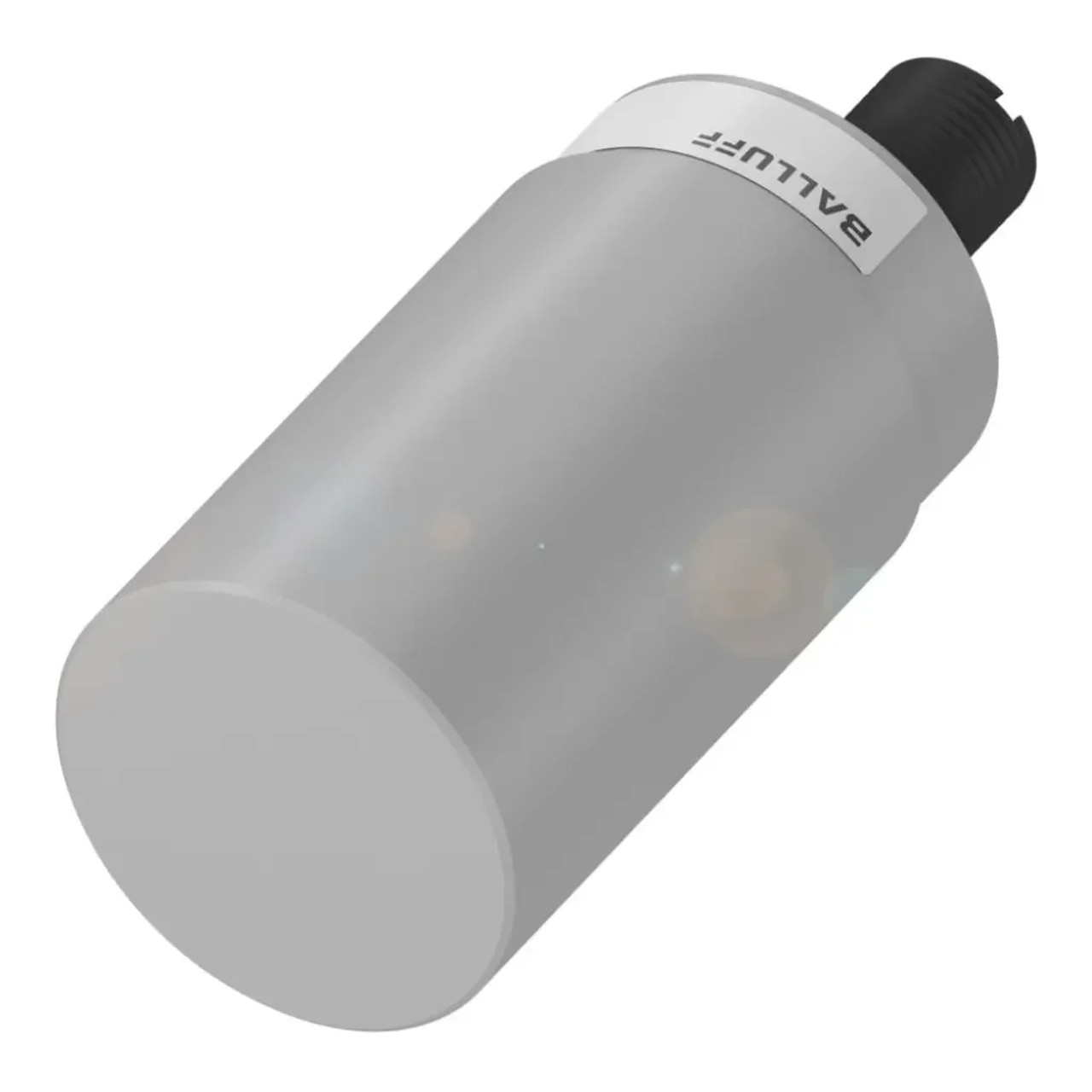

Balluff BCS00UJ BCS G34OOI2-PSC15D-S04K Capacitive Sensors DC 3-wire
Next Day Fittings is an official Balluff distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Balluff product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Balluff partner every step of the way. Principle of operation | Capacitive sensor |
Operating principle | Capacitive |
Ambient temperature | -5...85 °C |
Connection | Connector, M12x1-Male, 4-pin |
Connector design | M12x1 |
Dimension | ? 34 x 77 mm |
Function indicator | yes |
Housing material | POM |
Installation | for flush mounting |
Interface | PNP Normally open (NO) |
IP rating | IP67 |
Material | POM |
Material sensing surface | POM |
Measuring length | 2...15 mm |
Measuring range | 2...15 mm |
Mission Time | 20 a |
Operating voltage max. DC 01 | 30.0 V |
Operating voltage Ub | 10...30 VDC |
Power indicator | yes |
Range | 2...15 mm |
Rated operating voltage Ue | 24 VDC |
Rated operating voltage Ue DC | 24 V |
Sensitivity | Switching distance adjustable |
Size | D34.0 |
Storage temperature | -25...85 °C |
Style Housing | D34.0 |
Switching frequency | 100 Hz |
Switching function | Normally open (NO) |
Switching output | PNP Normally open (NO) |
Utilization category | DC -13 |
Approval/Conformity | CE, UKCA, cULus, WEEE |
Additional text | The potentiometer does not have a fixed stop, but can be turned endlessly without destroying anything. |
