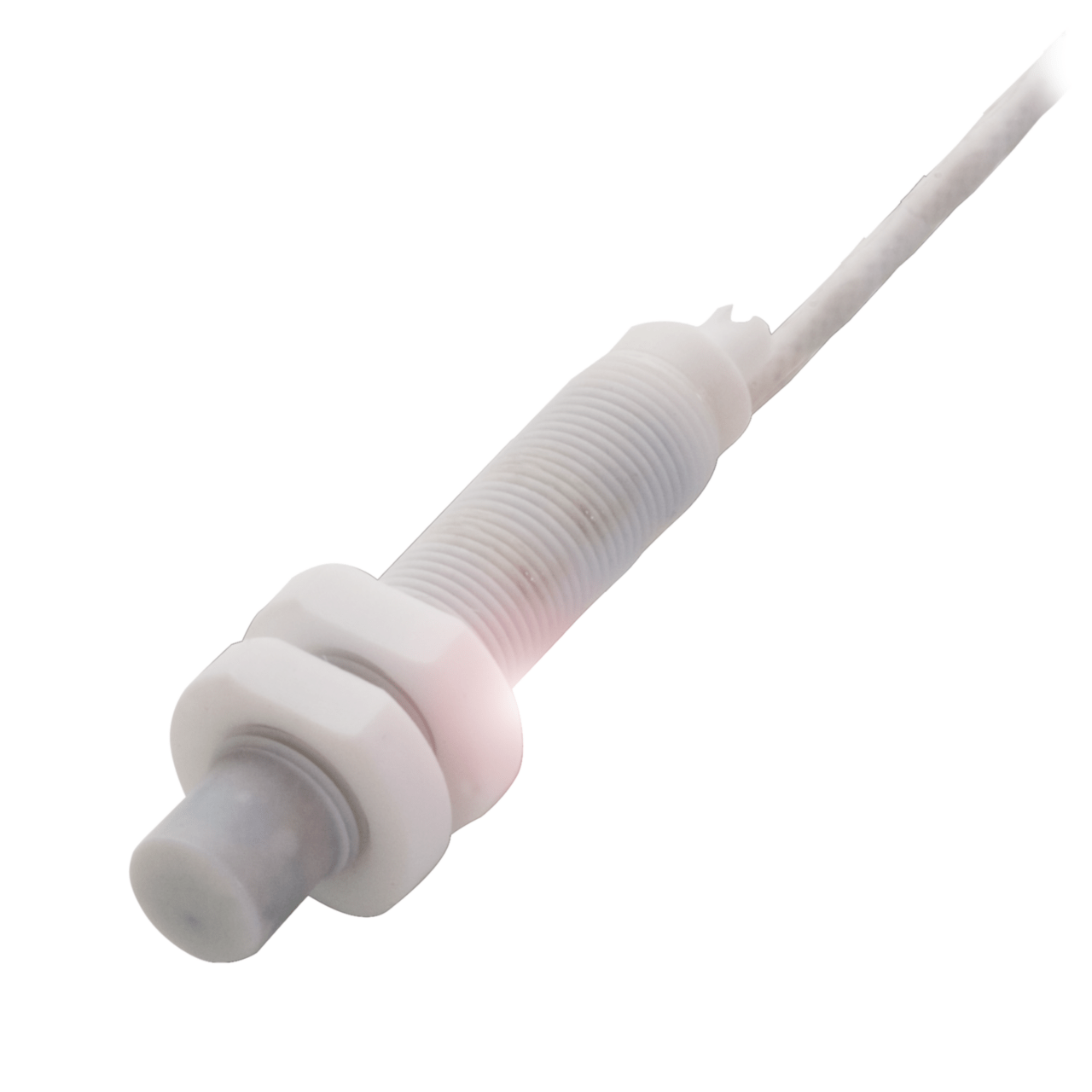

Balluff BCS009K Capacitive Sensors
Part # BCS009K Model Code: BCS M12TTI1-POM60G-ET02-E Additional Info: Capacitive Sensors, DC 3-wire Next Day Fittings is an authorized Balluff Distributor. If you have any questions about the Balluff BCS009K Capacitive Sensors's technical information or availability please call us at: 844-323-8752Next Day Fittings is an official Balluff distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Balluff product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Balluff partner every step of the way.Capacitive Sensor, Cable, Normally closed (NC), PNP, Non-Flush, M12x1.0, Housing material PTFE, IP65, Sn : 6.00 mm
Protection type IEC 60529 | IP65 |
Approval/Conformity | CE cULus |
Basic standard | IEC 60947-5-2 |
Housing material | PTFE |
Material sensing surface | PTFE |
Dimension | undefined |
Installation | non-flush |
Size | M12x1 |
Tightening torque | 0.5 Nm |
Switching output | PNP Normally closed (NC) |
Range | 1...6 mm |
Polarity reversal protected | yes |
Short-circuit protection | yes |
Hysteresis H max# (% of Sr) | 15.0 % |
Operating voltage Ub | 12...35 VDC |
Protected against miswiring | yes |
Rated insulation voltage Ui | 75 V DC |
Rated operating current Ie DC | 200 mA |
Repeat accuracy max# (% of Sr) | 2.0 % |
Switching frequency | 25 Hz |
Utilization category | DC -13 |
Voltage drop static max# | 0.8 V |
Ambient temperature | -30...60°C |
Rated operating distance Sn | 6 mm |
Ripple max# (% of Ue) | 10 % |
Temperature drift max# (% of Sr) | 15 % |
Conductor cross-section | 0.20 mm |
Number of conductors | 3 |
Scope of delivery | Nut (2x) |
Sensitivity | Switching distance adjustable |
Cover material | PTFE |
Material cover | PTFE |
Measuring range | 1...6 mm |
Material jacket | PTFE |
Cable length | 2 m |
Connection type | Cable, 2.00 m, PTFE |
