Product Description

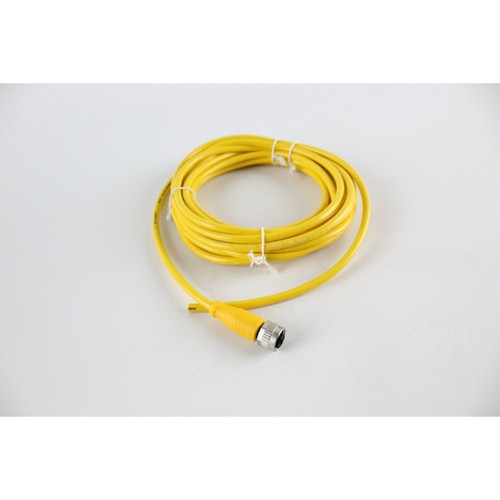

Balluff BCC032L BCC M415-0000-1A-014-PS0434-050 Connectors with cable
Next Day Fittings is an official Balluff distributor, we can offer our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Balluff product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is your Balluff partner every step of the way. Principle of operation | Connectors/cables |
Cable | PUR Shielded black, 5 m, Drag chain compatible |
Cable diameter D | 4.70 mm ±0.15 mm |
Cable shield | Copper braid, tin-plated |
Cable temperature, drag chain | -25...60 °C |
Cable temperature, fixed routing | -50...80 °C |
Cable temperature, flexible routing | -25...80 °C |
Conductor cross-section | 0.34 mm? |
Connection | M12x1-Female, Straight, 5-pin, 5.00 m, PUR |
Connector 01, cover nut material | Brass;nickel plates |
Connector configuration | Straight |
Connector design | M12x1 |
Gasket, material | Fluoroelastomer |
Interface | NO/NC |
IP rating | IP67 |
Material jacket | PUR, Shielded |
Number of conductors | 4 |
Operating voltage max. DC 01 | 250 V |
Operating voltage Ub | 250 VDC / 250 VAC |
Rated current (40 °C) | 4.0 A |
Switching function | NO/NC |
Switching output | antivalent |
Approval/Conformity | CE, cULus, WEEE |
Additional text | Cable construction acc. to UL-AWM Style 20549 |
