Product Description

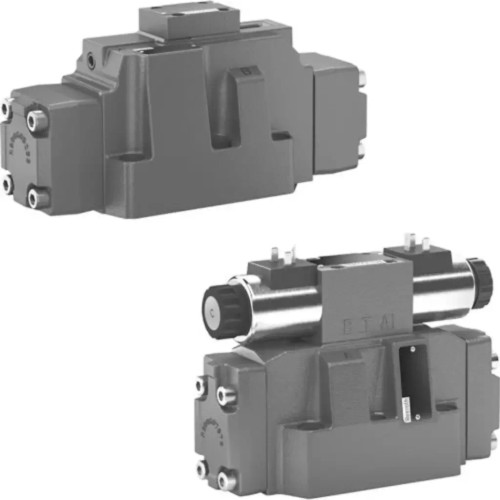

Bosch Rexroth R900969256 Hydraulic Directional Control Valves 4WEH16R7X/6EW110N9EK4/B10
Next Day Fittings is an authorized Bosch Rexroth distributor. If you have any questions about this product or it's availability, please call us at: 844-323-8752Bosch Rexroth industrial hydraulics solutions are crafted to conquer the most challenging conditions. Bosch Rexroth is synonymous with exceptional performance, steadfast reliability, and precise accuracy in the industrial hydraulics sector. Next Day Fittings takes pride in delivering Bosch Rexroth's top-tier hydraulics technology tailored for the rigorous demands of heavy-duty industries.4-way (4/2) directional control hydraulic direct-acting double solenoid valve (16gpm) with concealed manual override - circuit diagram D - Bosch Rexroth (WE series size 6...E / component series 6X (60...69)) - 4WE 6 D6X/OFEW110N9DK25L/V - 110Vac solenoid (30W) - 350bar / 5076psi - 5-pin ANSI ANSI/B93.55M-1981 connector with indic. light - FKM seals - Mounting on subplate (Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03) - IP65 - 4-ports 2-positions - high-power wet-pin solenoid (with detachable coil) - mech. detent - equivalent to 4WE6D6X/OFEW110N9DK25L/V / 4WE6D6XOFEW110N9DK25LVR900940417 Bosch Rexroth Hydraulic Direct-Acting Double Solenoid Valve - 4WE6D6X/OFEW110N9DK25L/V
Directional spool valves, direct operated, with solenoid actuation ? Type WE
Type WE hydraulic directional valves are heavy-duty, solenoid actuated, direct operated spool valves. They control the start, stop, and direction of a flow. These directional valves basically consist of the housing; one or two electronic solenoids, the control spool; and are available with or without return springs or detents. A full array of spools are possible with variations in voltage and electrical connection, all within the program. Flow and pressure rates available to cover a wide range of applications. The duty cycle is 100% with switching frequency capability of 15000/hr for DC and 7200/hr for AC.
Features:
- Size 6
- Component Series 6X
- Max Operating Pressure 350 bar
- Max flow 80 l/min - DC and 60 l/min - AC
- 4/3, 4/2 or 3/2 way versions
- Porting pattern according to ISO 4401-03-02-0-05 (with or without locating hole) and NFPA T3.5.1 R2-2002 D03
- High-power solenoid, optionally rotatable by 90°
- Electrical connection as individual or central connection
- Manual Override - optional
- Spool position monitoring - optional
- CE conformity according to the Low-Voltage Directive 2014/35/EU for electrical voltages >50 VAC or >75 VDC
- Solenoid coil as approved component with UR marking according to UL 906, edition 1982 - optional
- Approval according to CSA C22.2 No. 139-1982 - optional
Product | Bosch Rexroth Hydraulic direct-acting double solenoid valve |
Model Code | 4WE6D6X/OFEW110N9DK25L/V |
Series / Family | WE series - size 6...E / component series 6X (60...69) |
Valve Function | 4/2-way (4 ports / 2 positions), Double solenoid, Bistable |
Max. Flow | 60L/min |
Max Operating Pressure | 350bar |
Hydraulic Fluid Temperature Range | −15°C…+80°C |
Ambient Temperature Range | −15°C…+50°C |
Reset Method | Mechanical Detent |
Manual Override | Flush / Concealed |
Solenoid | High-Power Wet-Pin with Detachable Coil |
Seal Material | FKM |
Connection Type | 5-pin ANSI ANSI/B93.55M-1981 connector with indicator light |
Mounting Mode | Mounting on subplate (Porting pattern according to ISO 4401-03-02-0-05 and NFPA T3.5.1 R2-2002 D03) |
Power Consumption | 30W |
Current Consumption | 1A (nominal hold current) |
Control Voltage (AC) | 110Vac (50Hz/60Hz) |
Diagram | circuit diagram D |
Protection Class | IP65 |
Compliant with standard(s) | CE |
