Product Description

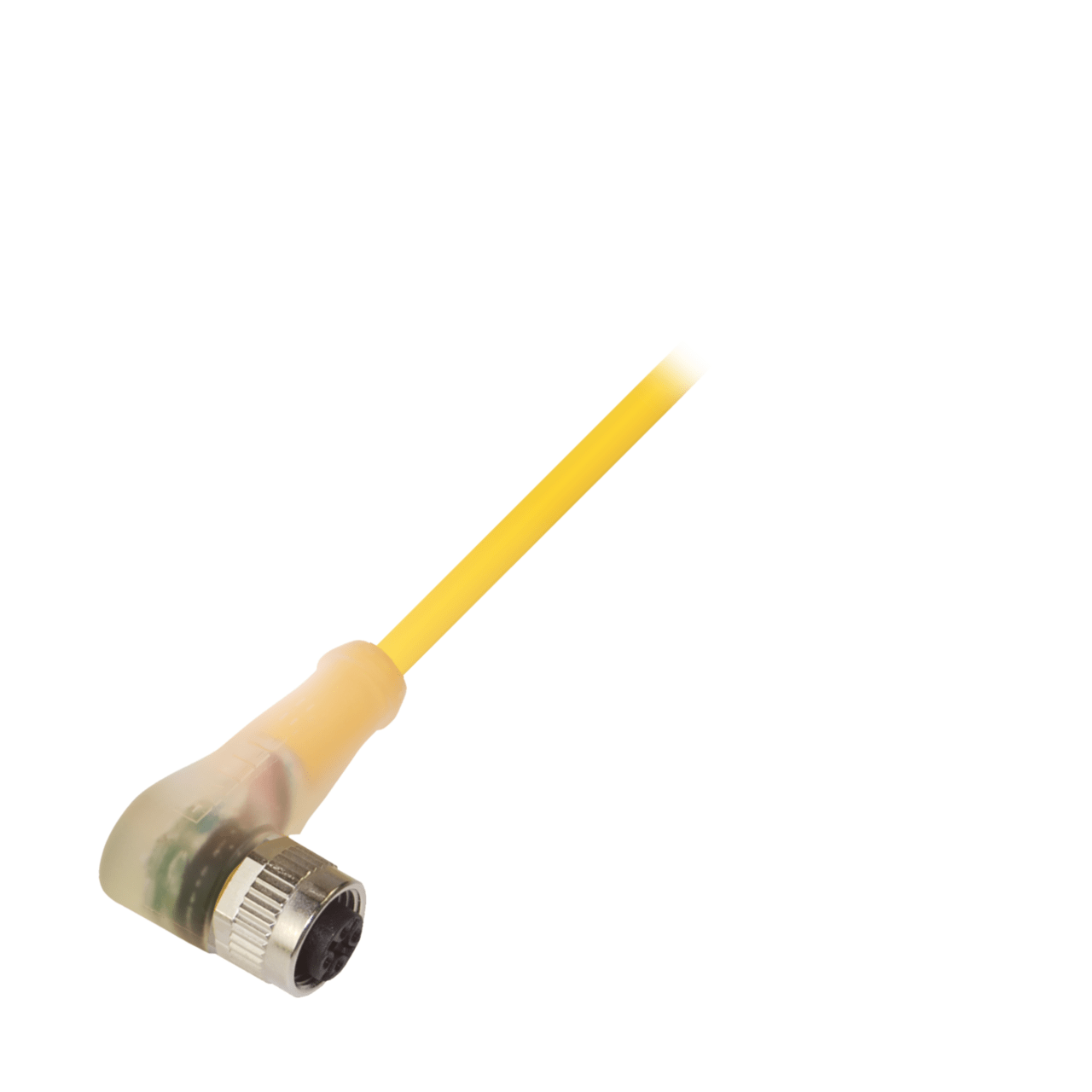

Balluff Bcc05W1 Sensor / Actuator Cable Bcc M425-0000-1A-008-Ex44T2-100 Single-Ended Cordset
Next Day Fittings is an authorized Balluff distributorAs an official Balluff distributor, Next Day Fittings delivers our customers the best pricing and factory lead times. Our trained and knowledgeable staff is always ready to help with any aspect of the Balluff Sensor / Actuator Cables product purchasing process. Whether you need assistance from a customer service agent or a product engineering expert, Next Day Fittings is committed to being your Balluff Sensor / Actuator Cables partner every step of the way.Balluff Bcc05W1 Sensor / Actuator Cable Bcc M425-0000-1A-008-Ex44T2-100 Single-Ended CordsetManufacturer:BalluffManufacturer Part Number:BCC05W1| Protection type IEC 60529 | IP68 |
| Approval/Conformity | cULus LISTED |
| Switching output | PNP Normally open/Normally closed (NO/NC) |
| Power indicator | LED green |
| Operating voltage Ub | 36 VDC |
| Bending radius min#- fixed cable | 5 x D |
| Bending radius min#- flexible cable | 10 x D |
| Cable | TPE yellow, 10.00 m, Drag chain compatible |
| Cable diameter D | 5.30 mm ±0.13 mm |
| Cable- bending cycles min# | 10 million |
| Conductor cross-section | AWG 22 |
| Number of conductors | 4 |
| Number of pins | 5 |
| System | Molded |
| Rated current (40°C) | 4.0 A |
| Cable temperature- fixed routing | -50...105°C |
| Cable temperature- flexible routing | -25...105°C |
| Material contact carrier | PUR |
| Material contacts | Bronze |
| Material cover nut | Die-cast zinc |
| Material grip | TPU |
| Tightening torque pigtail | 0.6 Nm |
| Cable rated voltage AC max# | 300.0 V |
| Cable rated voltage DC max# | 300.0 V |
| Function indicator (Pin 4) | LED yellow |
