Product Description

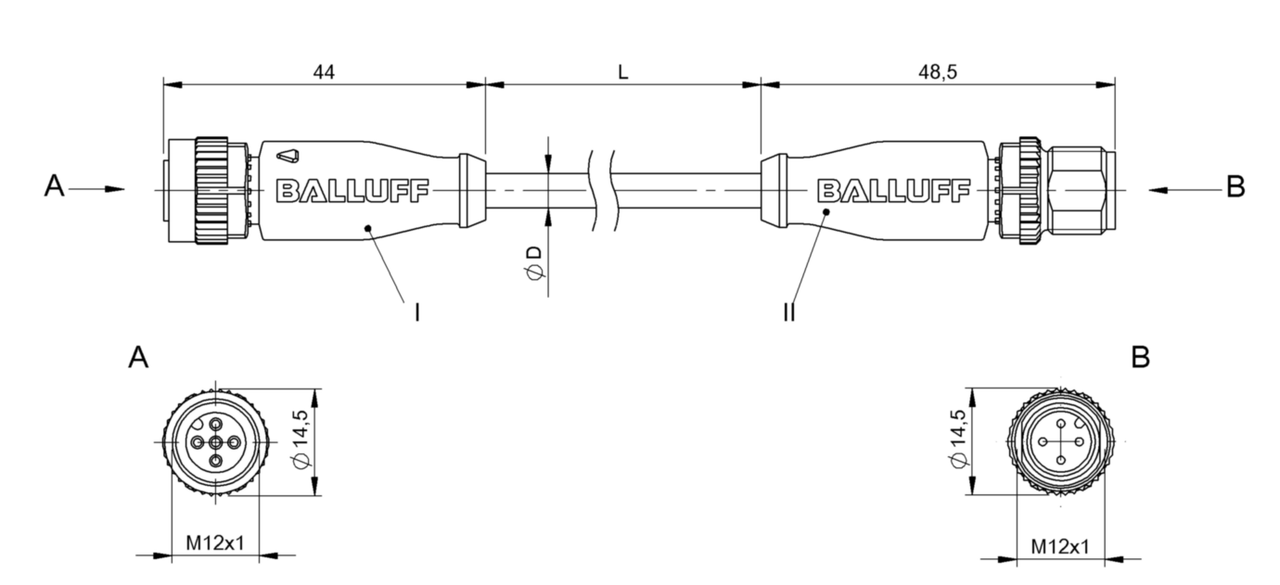

Balluff Bcc05Lu Extension Cable Bcc M415-M414-3A-304-Ex44T2-010 Double-Ended CordsetManufacturer:BalluffManufacturer Part Number:BCC05LUProtection type IEC 60529 | IP68 /IP68 |
Approval/Conformity | cULus LISTED |
Bending radius min#- fixed cable | 5 x D |
Bending radius min#- flexible cable | 10 x D |
Cable | TPE yellow, 1.00 m, Drag chain compatible |
Cable diameter D | 5.30 mm ±0.13 mm |
Cable- bending cycles min# | 10 million |
Conductor cross-section | AWG 22 |
Number of conductors | 4 |
System | Molded/Molded |
Rated current (40°C) | 4.0 A |
Cable temperature- fixed routing | -50...105°C |
Cable temperature- flexible routing | -25...105°C |
Material contact carrier | PUR/PUR |
Material contacts | Bronze/Brass |
Material cover nut | Die-cast zinc/Die-cast zinc |
Material grip | TPU/TPU |
Tightening torque pigtail | 0.6 Nm/0.6 Nm |
Cable rated voltage AC max# | 300.0 V |
Cable rated voltage DC max# | 300.0 V |
